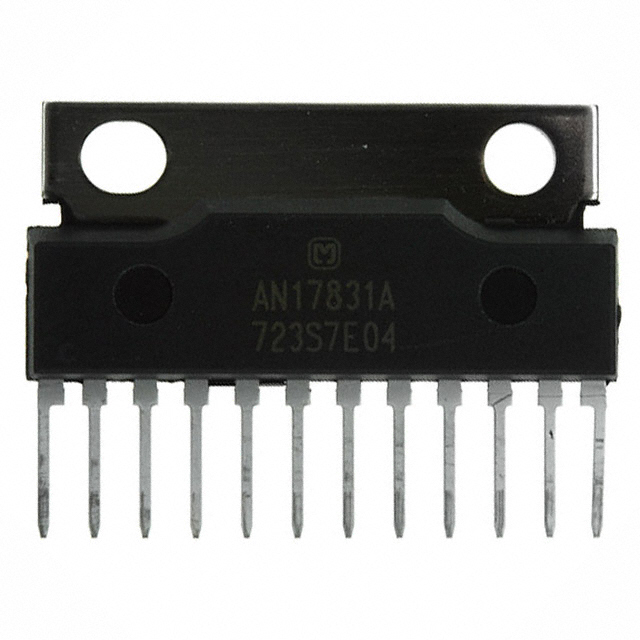

AN17831A

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 44W 12SIL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 44W 12SIL

Technical Specifications

Parameters and characteristics for this part

Specification	AN17831A

Features	Short-Circuit and Thermal Protection, Mute, Standby
Max Output Power x Channels @ Load	44 W
Max Output Power x Channels @ Load [custom]	2
Mounting Type	Through Hole
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	12-SIP + Tab
Supplier Device Package	12-SIL
Type	Class AB
Voltage - Supply [Max]	26.5 V
Voltage - Supply [Min]	8 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Type	Supplier Device Package	Package / Case	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Mounting Type
Panasonic Industrial Automation Sales AN17831A	-25 °C	75 °C	44 W	2	Class AB	12-SIL	12-SIP + Tab	Mute Short-Circuit and Thermal Protection Standby	8 V	26.5 V	2-Channel (Stereo)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 12-SIL
