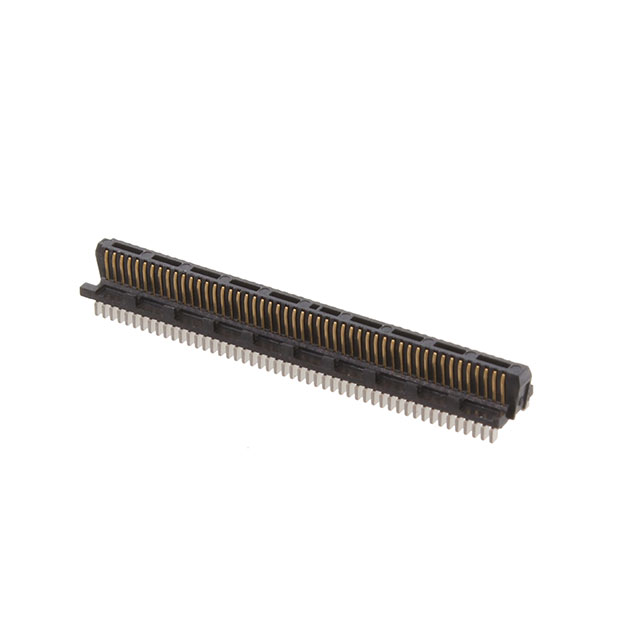

ST5-50-1.50-L-D-P-TR

Active

Samtec Inc.

CONN LOW PROFILE TERMINAL STRIP HDR 100 POS 0.5MM SOLDER ST TOP ENTRY SMD T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN LOW PROFILE TERMINAL STRIP HDR 100 POS 0.5MM SOLDER ST TOP ENTRY SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ST5-50-1.50-L-D-P-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	0.141 in
Height Above Board	3.58 mm
Mated Stacking Heights	4.5 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Contact Finish	Mated Stacking Heights	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Features	Number of Rows	Pitch [x]	Pitch [x]
Samtec Inc. ST5-50-1.50-L-D-P-TR	Surface Mount	Gold	4.5 mm 5 mm	100	Header Center Strip Contacts	10 Áin	0.25 Ám	0.141 in	3.58 mm	Pick and Place	2	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Header, Center Strip Contacts Surface Mount Gold
