BVB01/Z0000/11

Active

BULGIN LIMITED

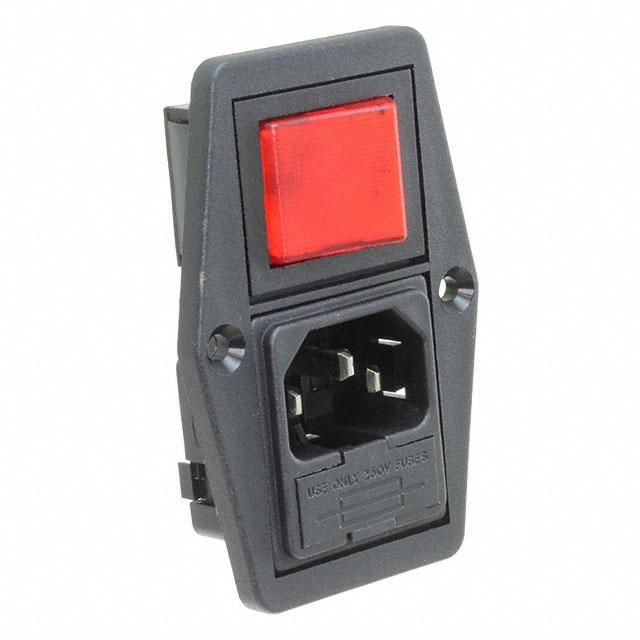

POWER ENTRY MODULE UNFILTERED M 3 POS FUSE/SWITCH ST 1 PORT

Search across all available documentation for this part.

Active

BULGIN LIMITED

POWER ENTRY MODULE UNFILTERED M 3 POS FUSE/SWITCH ST 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BVB01/Z0000/11	BVB01/Z Series

Accomodates a Fuse	True	True
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	33 mm	33 mm
Panel Cutout Dimensions [y]	66.3 mm	53.2 - 66.3 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Voltage Rating - Appliance Inlet	Material Flammability Rating	Mounting Type	Connector Style	Approval Agency	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Switch Features
BULGIN LIMITED BVB01/Z0000/01	Receptacle, Male Blades - Module	250 VAC	UL94 V-0	Flange, Panel Mount	IEC 320-C14	CSA, ENEC, UL, VDE	Unfiltered - Commercial	53.2 mm	33 mm	0.25 in	6.3 mm	Quick Connect	10 A	Fuse Holder	Switch On-Off
BULGIN LIMITED BVB01/Z0000/12	Receptacle, Male Blades - Module	250 VAC	UL94 V-0	Flange, Panel Mount	IEC 320-C14	CSA, ENEC, UL, VDE	Unfiltered - Commercial	66.3 mm	33 mm	0.25 in	6.3 mm	Quick Connect	10 A	Fuse Holder	Switch On-Off
BULGIN LIMITED BVB01/Z0000/11	Receptacle, Male Blades - Module	250 VAC	UL94 V-0	Flange, Panel Mount	IEC 320-C14	CSA, ENEC, UL, VDE	Unfiltered - Commercial	66.3 mm	33 mm	0.25 in	6.3 mm	Quick Connect	10 A	Fuse Holder	Switch On-Off
BULGIN LIMITED BVB01/Z0000/02	Receptacle, Male Blades - Module	250 VAC	UL94 V-0	Flange, Panel Mount	IEC 320-C14	CSA, ENEC, UL, VDE	Unfiltered - Commercial	53.2 mm	33 mm	0.25 in	6.3 mm	Quick Connect	10 A	Fuse Holder	Switch On-Off
BULGIN LIMITED BVB01/Z0000/08	Receptacle, Male Blades - Module	250 VAC	UL94 V-0	Flange, Panel Mount	IEC 320-C14	CSA, ENEC, UL, VDE	Unfiltered - Commercial	53.2 mm	33 mm	0.25 in	6.3 mm	Quick Connect	10 A	Fuse Holder	Switch On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
