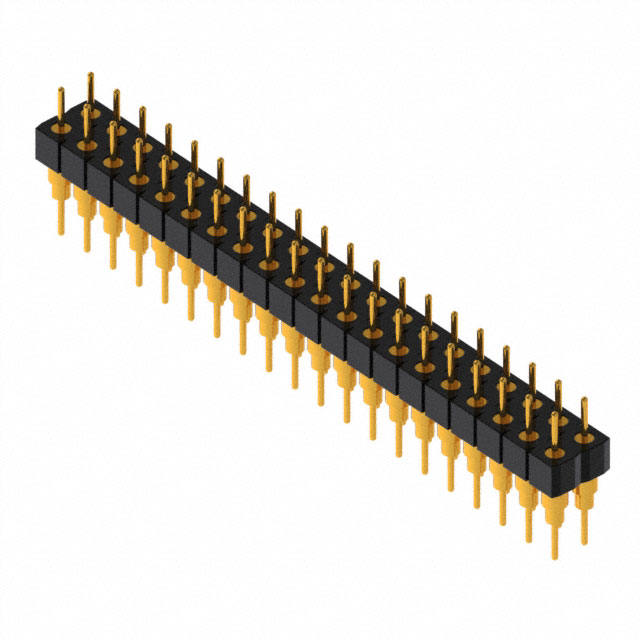

BBD-120-G-A

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-120-G-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Rows	Termination	Insulation Material	Contact Finish - Post	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Shape	Mounting Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Height [z]	Insulation Height [z]	Overall Contact Length
Samtec Inc. BBD-120-G-A-N	All	Gold	3.18 mm	0.125 in	3.94 mm	0.155 in	Black	Header	-55 °C	125 °C	Unshrouded	0.51 µm	20 µin	4.57 mm	0.18 "	2	Solder	Polyester Glass Filled	Nickel	40	2.54 mm	0.1 in	11.68 mm	0.46 "	Circular	Through Hole	Push-Pull	1.27 µm	50 µin	0.1 in	2.54 mm	Male Pin
Samtec Inc. BBD-120-G-A	All	Gold	3.18 mm	0.125 in	3.18 mm	0.125 in	Black	Header	-55 °C	125 °C	Unshrouded	0.51 µm	20 µin			2	Solder	Polyester Glass Filled	Nickel	40	2.54 mm	0.1 in	11.68 mm	0.46 "	Circular	Through Hole	Push-Pull	1.27 µm	50 µin	0.1 in	2.54 mm	Male Pin	5.35 mm	0.211 in
Samtec Inc. BBD-120-T-B	All		3.18 mm	0.125 in	3.18 mm	0.125 in	Black	Header	-55 °C	125 °C	Unshrouded			8.51 mm	0.335 "	2	Solder	Polyester Glass Filled	Nickel	40	2.54 mm	0.1 in	0.585 in		Circular	Through Hole	Push-Pull	1.27 µm	50 µin	0.1 in	2.54 mm	Male Pin			14.86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	11	$ 19.94
