PD57-2-1161

Active

Analog Devices Inc./Maxim Integrated

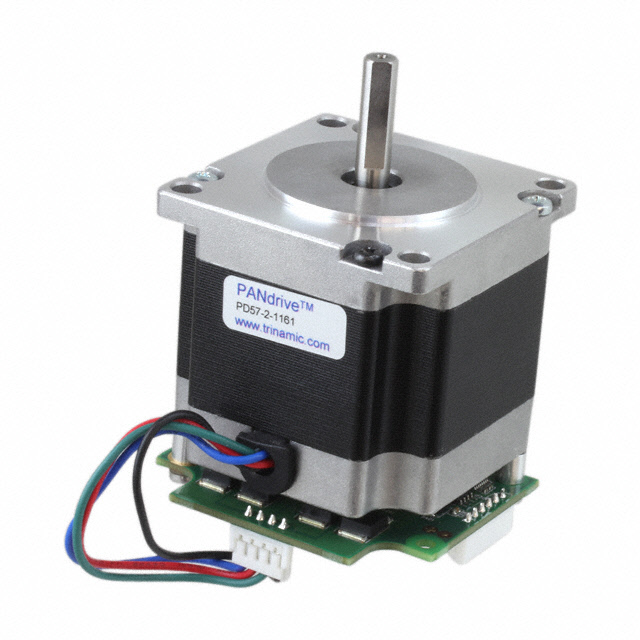

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

Search across all available documentation for this part.

PD57-2-1161

Active

Analog Devices Inc./Maxim Integrated

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PD57-2-1161	PD57-2 Series

Accuracy	-	Ý5%
Coil Resistance	-	0.8 Ohms
Coil Type	Bipolar	Bipolar
Current Rating (Amps)	2.8 A	2.8 A
Diameter - Shaft [diameter]	0.25 in	0.25 in
Diameter - Shaft [diameter]	6.35 mm	6.35 mm
Features	Flatted Shaft, Integrated Controller	Flatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]	24 mm	24 mm
Length - Shaft and Bearing [x]	0.945 in	0.945 in
Mounting Hole Spacing	47.14 mm	47.14 mm
Mounting Hole Spacing	1.856 in	1.856 in
NEMA Frame Size	24	23, 24
Operating Temperature	-	50 °C
Operating Temperature	-	-20 C
Rotor Inertia	-	275 gcm˛
Size / Dimension [x]	2.362 in	2.362 in
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	2.362 in	2.362 in
Size / Dimension [y]	60 mm	60 mm
Step Angle	1.8 °	1.8 °
Step Angle	-	1.8¯
Steps per Revolution	200	200
Torque - Holding (oz-in / mNm)	143.05 oz-in	143.03 - 143.05 oz-in
Torque - Holding (oz-in / mNm)	1010 mNm	1010 mNm
Type	Hybrid	Hybrid
Voltage - Rated	24 VDC	2.3 - 24 V
Voltage - Rated	-	48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 248.53
		5	$ 228.40
		10	$ 220.25
		25	$ 218.69

PD57-2 Series

STEPPER MOTOR HYBRID BIPOLAR 24V

Part	Voltage - Rated	Coil Resistance	Step Angle	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Rotor Inertia	NEMA Frame Size	Steps per Revolution	Type	Features	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Mounting Hole Spacing	Mounting Hole Spacing	Step Angle	Accuracy	Voltage - Rated [custom]
Analog Devices Inc./Maxim Integrated PD57-2-1276-TMCL	2.3 V	0.8 Ohms	1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm	275 gcm˛	23	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar	50 °C	-20 C	143.03 oz-in	1010 mNm
Analog Devices Inc./Maxim Integrated PD57-2-1161	24 VDC		1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm		24	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar			143.05 oz-in	1010 mNm	0.25 in	6.35 mm	24 mm	0.945 in	47.14 mm	1.856 in
Analog Devices Inc./Maxim Integrated PD57-2-1276-CANOPEN	2.3 V	0.8 Ohms		2.8 A	2.362 in	2.362 in	60 mm	60 mm	275 gcm˛	23	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar	50 °C	-20 C	143.03 oz-in	1010 mNm							1.8¯	Ý5%
Analog Devices Inc./Maxim Integrated PD57-2-1260-TMCL	2.3 V		1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm	275 gcm˛	23	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar	50 °C	-20 C	143.03 oz-in	1010 mNm	0.25 in	6.35 mm	24 mm	0.945 in	47.14 mm	1.856 in
Analog Devices Inc./Maxim Integrated PD57-2-1260-CANOPEN	2.3 V		1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm	275 gcm˛	24	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar	50 °C	-20 C	143.03 oz-in	1010 mNm	0.25 in	6.35 mm	24 mm	0.945 in	47.14 mm	1.856 in
Analog Devices Inc./Maxim Integrated PD57-2-1160-TMCL			1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm		24	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar			143.05 oz-in	1010 mNm	0.25 in	6.35 mm	24 mm	0.945 in	47.14 mm	1.856 in			48 VDC
Analog Devices Inc./Maxim Integrated PD57-2-1160-CANOPEN			1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm		24	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar			143.05 oz-in	1010 mNm	0.25 in	6.35 mm	24 mm	0.945 in	47.14 mm	1.856 in			48 VDC
Analog Devices Inc./Maxim Integrated PD57-2-1076	2.3 V	0.8 Ohms	1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm	275 gcm˛	23	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar	50 °C	-20 C	143.03 oz-in	1010 mNm
Analog Devices Inc./Maxim Integrated PD57-2-1378-CANOPEN	2.3 V	0.8 Ohms	1.8 °	2.8 A	2.362 in	2.362 in	60 mm	60 mm	275 gcm˛	23	200	Hybrid	Flatted Shaft, Integrated Controller	Bipolar	50 °C	-20 C	143.03 oz-in	1010 mNm

Description

General part information

PD57-2 Series

Bipolar Stepper Motor Hybrid Frame Size 24 200.0 Step 2.8 A 24VDC
