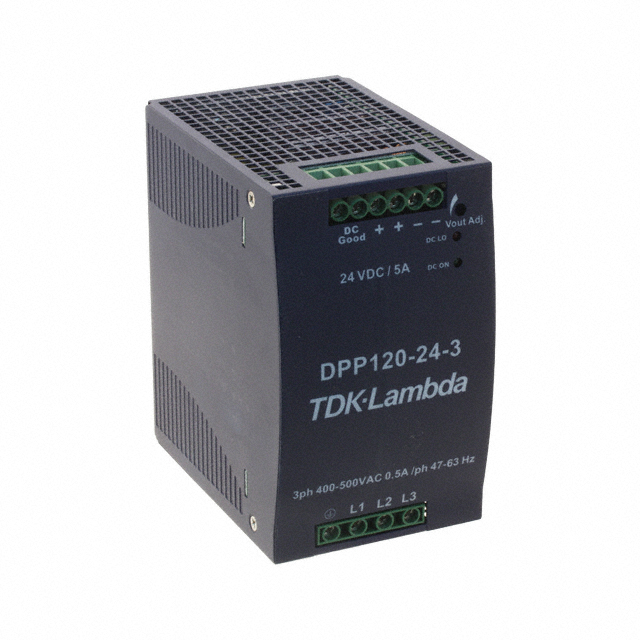

DPP120-24-3
TDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 120 W, 24 VDC, 5 A
Deep-Dive with AI
Search across all available documentation for this part.
DPP120-24-3
TDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 120 W, 24 VDC, 5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DPP120-24-3 |
|---|---|
| AC Voltage - Input [Max] | 575 VAC |
| AC Voltage - Input [Min] | 340 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 87 % |
| Features | Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 118.9 mm |
| Size / Dimension [x] | 4.68 in |
| Size / Dimension [y] | 74.2 mm |
| Size / Dimension [y] | 2.92 in |
| Size / Dimension [z] | 124 mm |
| Size / Dimension [z] | 4.88 " |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DPP120 Series
The DPP120-24-3 is a 1-output DIN rail mount AC/DC Power Supply with universal input. The DPP120 series power supply supports global use, has easier system configuration and easy system integration. It is ideal for use in chemical processing, burn in and test applications.
