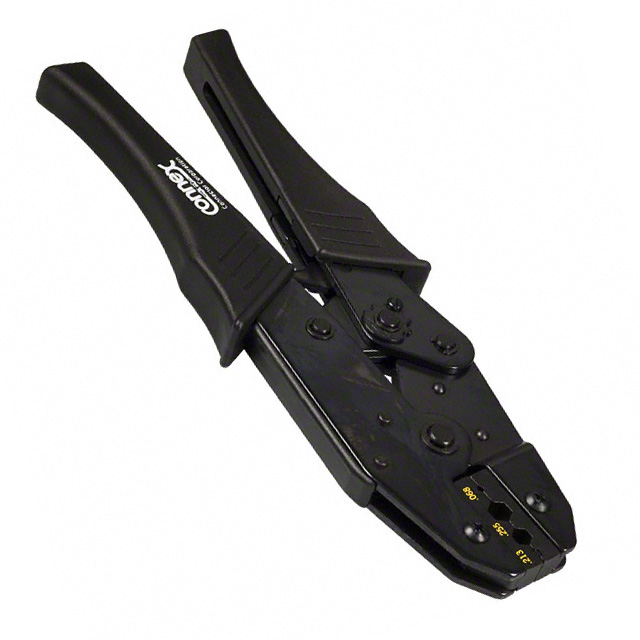

47-10070
ActiveCRIMP TOOL, RATCHET, RF COAXIAL CONNECTORS, AMPHENOL RF CONNEX 47 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
47-10070
ActiveCRIMP TOOL, RATCHET, RF COAXIAL CONNECTORS, AMPHENOL RF CONNEX 47 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 47-10070 |
|---|---|
| For Use With/Related Products | Coaxial, RF Connectors |
| Ratcheting | Ratchet |
| Tool Type | Hand Crimper |
| Wire Entry Location | Side Entry |
47-10 Series
| Part | Ratcheting | Tool Type | For Use With/Related Products | Wire Entry Location |
|---|---|---|---|---|
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF - N | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | BNC Coaxial RF SMA TNC | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | BNC Coaxial RF TNC | Side Entry |
Amphenol RF | Ratchet | Hand Crimper | Coaxial RF Connectors | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.23 | |
| 5 | $ 120.69 | |||
| 10 | $ 116.80 | |||
| 25 | $ 111.86 | |||
Description
General part information
47-10 Series
The 47-10070 is a Complete Crimp Tool with die set for use with RG 55/58/59/62/141/142/233/303/400/8X LMR195/200/240 cables. For 0.068, 0.213 and 0.255-inch hex crimping. The 47 series coax crimp tool utilizes industry-standard crimp die-set dimensions. Die set will terminate all popular coaxial cable. Full ratchet crimp action ensures ferrules and contacts are fully crimped before tool releases.
