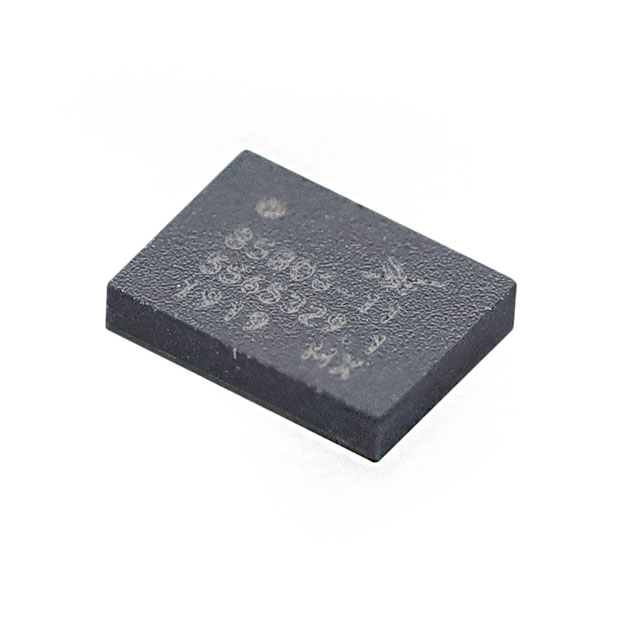

SKY85806-11
ActiveSkyworks Solutions Inc.
IC WLAN FRONT-END DUAL 28QFN
SKY85806-11
ActiveSkyworks Solutions Inc.
IC WLAN FRONT-END DUAL 28QFN
Description
General part information
SKY85806 Series
RF Front End 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.9GHz 802.11a/b/g/n/ac, WLAN 28-QFN (3x4)
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY85806-11 |
|---|---|
| Features | 3.3V Supply Voltage |
| Frequency Range 1 (Max) | 2.5 GHz |
| Frequency Range 1 (Min) | 2.4 GHz |
| Frequency Range 2 (Max) | 5.9 GHz |
| Frequency Range 2 (Min) | 5.15 GHz |
| Package / Case | 28-VFQFN Exposed Pad |
| Package Length | 3 mm |
| Package Name | 28-QFN |
| Package Width | 4 mm |
| RF Type | WLAN, ac, 802.11a, g, n, b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
