Technical Specifications
Parameters and characteristics for this part
| Specification | FN2450B-6-61 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 10.5 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 32 | $ 38.45 | |
Description
General part information
Schaffner FN2450 Series

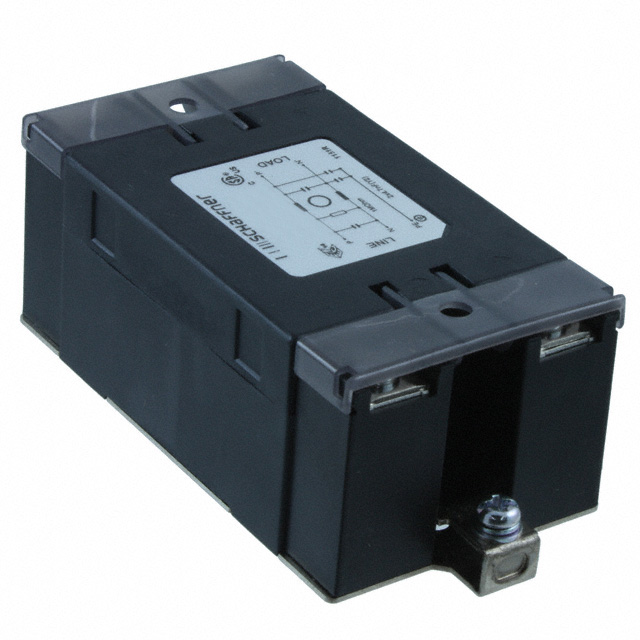

6 A Single Phase Filter, Ring Terminal Input, Ring Terminal Output, 250 VAC, Schaffner FN2450, Single Phase Filters
Documents
Technical documentation and resources
