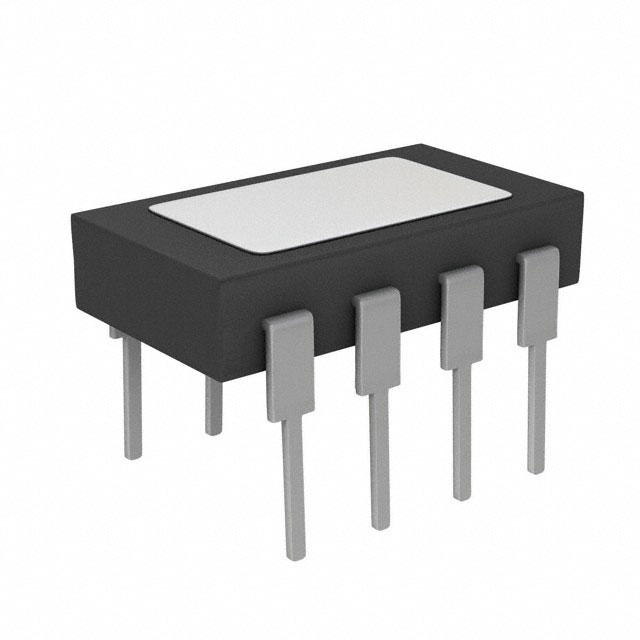

SN65HVD11SJD
ActiveHIGH TEMPERATURE 3.3-V RS-485 TRANSCEIVER
Deep-Dive with AI
Search across all available documentation for this part.
SN65HVD11SJD
ActiveHIGH TEMPERATURE 3.3-V RS-485 TRANSCEIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SN65HVD11SJD | SN65HVD11-HT Series |
|---|---|---|
| Data Rate | 10 Mbps | 10 Mbps |
| Duplex | Half | Half |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Operating Temperature [Max] | 210 °C | 210 - 347 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | 8-CDIP | 8-CSOIC, 17-UltraCSP™ (Xcept), 8-SOIC, 8-CFlatPack, 8-CDIP |
| Package / Case | - | 0.154 - 0.22 in |
| Package / Case | - | 3.9 - 5.65 mm |
| Protocol | RS422, RS485 | RS422, RS485 |
| Receiver Hysteresis | 41 mV | 41 mV |
| Supplier Device Package | 8-CDIP | 8-CFP, 8-SOIC, 8-CDIP |
| Type | Transceiver | Transceiver |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
SN65HVD11-HT Series
High Temperature 3.3-V RS-485 Transceiver
| Part | Mounting Type | Package / Case | Package / Case [x] | Package / Case [y] | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Receiver Hysteresis | Data Rate | Duplex | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments SN65HVD11SHKQ | Surface Mount | 8-CSOIC | 0.22 in | 5.65 mm | 3.6 V | 3 V | Transceiver | 41 mV | 10 Mbps | Half | RS422, RS485 | 210 °C | -55 °C | 8-CFP | ||
Texas Instruments SN65HVD11SKGDA | Surface Mount | 17-UltraCSP™ (Xcept) | 3.6 V | 3 V | Transceiver | 41 mV | 10 Mbps | Half | RS422, RS485 | 210 °C | -55 °C | |||||
Texas Instruments SN65HVD11HD | Surface Mount | 8-SOIC | 0.154 in | 3.9 mm | 3.6 V | 3 V | Transceiver | 41 mV | 10 Mbps | Half | RS422, RS485 | 347 °F | -55 °C | 8-SOIC | ||
Texas Instruments SN65HVD11SHKJ | Surface Mount | 8-CFlatPack | 3.6 V | 3 V | Transceiver | 41 mV | 10 Mbps | Half | RS422, RS485 | 210 °C | -55 °C | 8-CFP | ||||
Texas Instruments SN65HVD11SJD | Through Hole | 8-CDIP | 3.6 V | 3 V | Transceiver | 41 mV | 10 Mbps | Half | RS422, RS485 | 210 °C | -55 °C | 8-CDIP | 7.62 mm | 0.3 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Texas Instruments | TUBE | 1 | $ 130.04 | |
| 100 | $ 126.13 | |||
| 250 | $ 105.01 | |||
| 1000 | $ 97.77 | |||
Description
General part information
SN65HVD11-HT Series
The SN65HVD11-HT device combines a 3-state differential line driver and differential input line receiver that operates with a single 3.3-V power supply. It is designed for balanced transmission lines and meets or exceeds ANSI TIA/EIA-485-A and ISO 8482:1993, with the exception that the thermal shutdown is removed. This differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. The driver and receiver have active-high and active-low enables, respectively, that can be externally connected together to function as direction control.
The driver differential outputs and receiver differential inputs connect internally to form a differential input/ output (I/O) bus port that is designed to offer minimum loading to the bus when the driver is disabled or VCC= 0.
The SN65HVD11-HT device combines a 3-state differential line driver and differential input line receiver that operates with a single 3.3-V power supply. It is designed for balanced transmission lines and meets or exceeds ANSI TIA/EIA-485-A and ISO 8482:1993, with the exception that the thermal shutdown is removed. This differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. The driver and receiver have active-high and active-low enables, respectively, that can be externally connected together to function as direction control.
