Specification	APH-HDBNCP-J

Adapter Series	HD, BNC, HD to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC HD Plug, Male Pin
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	BNC HD Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Impedance	75 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

APH-HDBNCP Series

Part	Center Contact Plating	Impedance	Frequency - Max	Adapter Type	Style	Center Gender	Fastening Type	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Conversion Type	Adapter Series	Center Contact Material	Mating Cycles	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Finish	Contact Finish	Contact Material	Connector Type	Connector Style

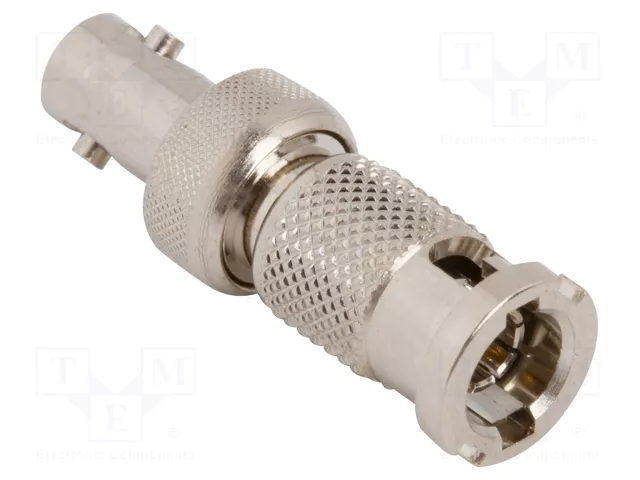

McGill Microwave Systems APH-HDBNCP-J	Gold	75 Ohm	4 GHz	Plug to Jack	Straight	Female Male	Bayonet Lock	Free Hanging (In-Line)	BNC HD Plug Male Pin	BNC HD Jack	Female Socket	Same Series	BNC HD HD to BNC	Beryllium Copper	500 cycles	Brass	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Nickel

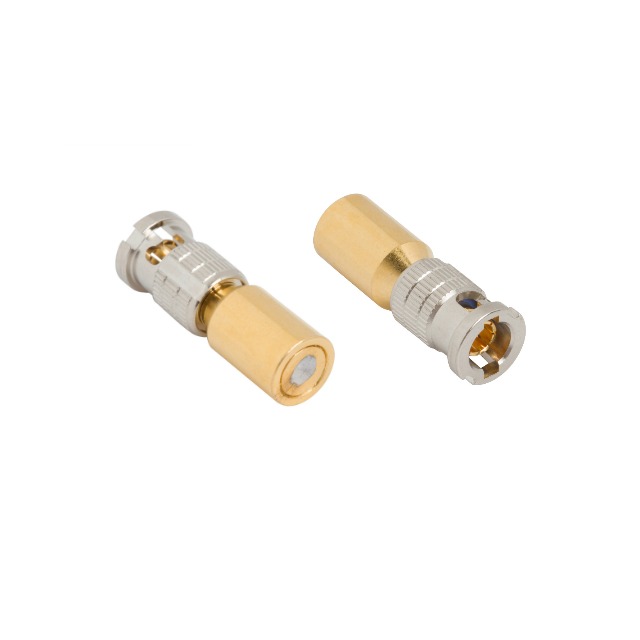

McGill Microwave Systems APH-HDBNCP-T-50		50 Ohm	6000 MHz					Cap Free Hanging								Brass			Polytetrafluoroethylene (PTFE)	Gold	Gold	Beryllium Copper	Male Pin Plug	BNC HD
