Specification	4-1775099-6

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Post	120 µin
Contact Length - Post	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Fastening Type	Locking Ramp
Insulation Color	Ivory
Insulation Height	0.504 in
Insulation Material	Nylon 9T, Polyamide (PA9T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	250 V

1775099 Series

Part	Current Rating	Contact Length - Post	Connector Type	Pitch - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Contact Finish Thickness - Mating	Row Spacing - Mating	Termination	Voltage Rating	Contact Finish - Mating	Fastening Type	Features	Material Flammability Rating	Shrouding	Contact Type	Number of Positions Loaded	Number of Positions	Insulation Material	Mounting Type	Contact Finish - Post	Number of Rows	Insulation Height	Contact Material	Insulation Color	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 1-1775099-1	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp	Board Lock	UL94 V-0	Shrouded - 4 Wall	Male Pin	All	20	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin
TE Connectivity AMP Connectors 4-1775099-4	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp		UL94 V-0	Shrouded - 4 Wall	Male Pin	All	12	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin

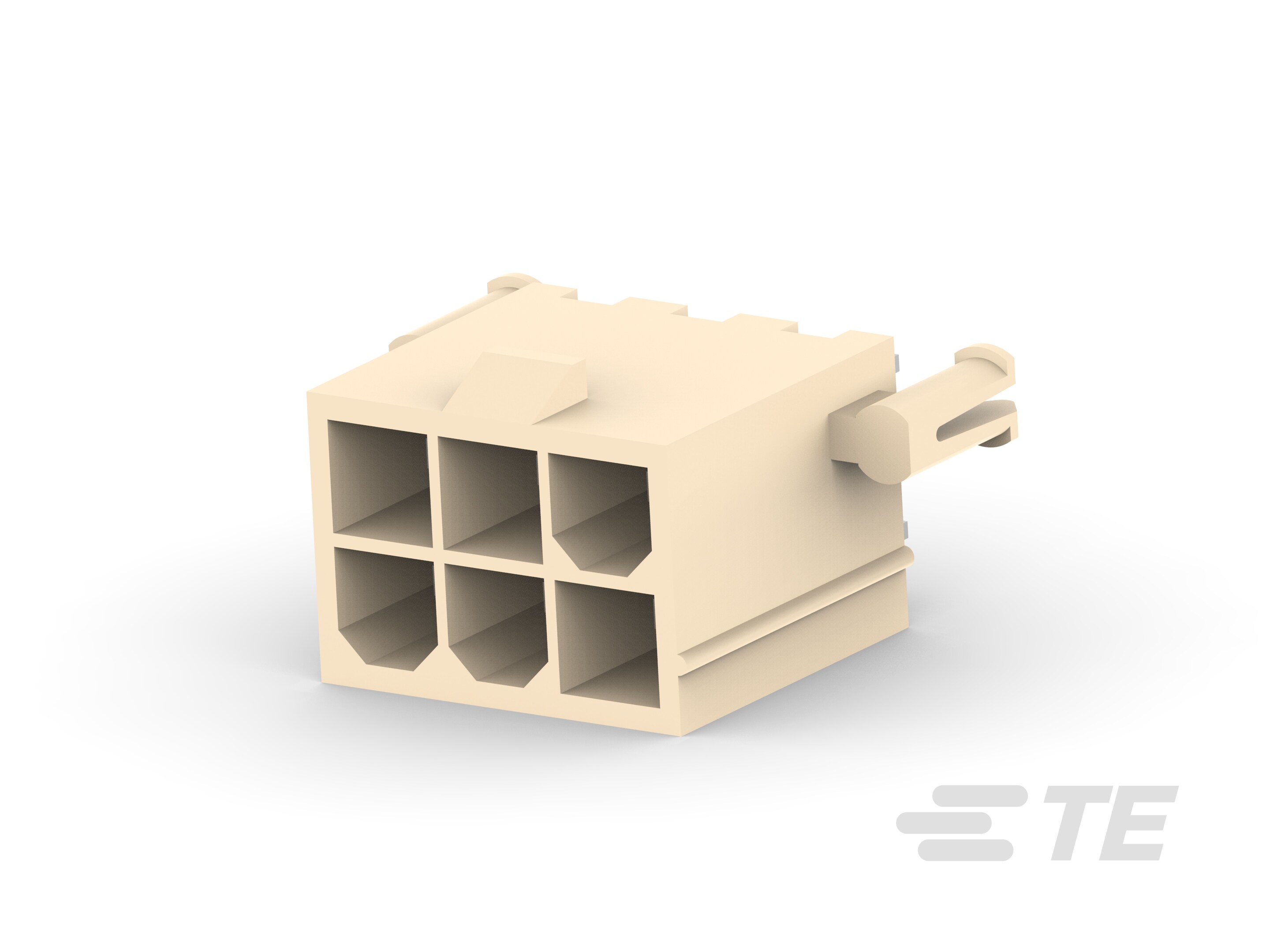

TE Connectivity AMP Connectors 2-1775099-1	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp	Board Lock	UL94 V-0	Shrouded - 4 Wall	Male Pin	All	6	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin
TE Connectivity AMP Connectors 3-1775099-4	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp	Board Lock	UL94 V-0	Shrouded - 4 Wall	Male Pin	All	12	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin
TE Connectivity AMP Connectors 4-1775099-6	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp		UL94 V-0	Shrouded - 4 Wall	Male Pin	All	18	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin
TE Connectivity AMP Connectors 4-1775099-8	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp		UL94 V-0	Shrouded - 4 Wall	Male Pin	All	24 pos	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin

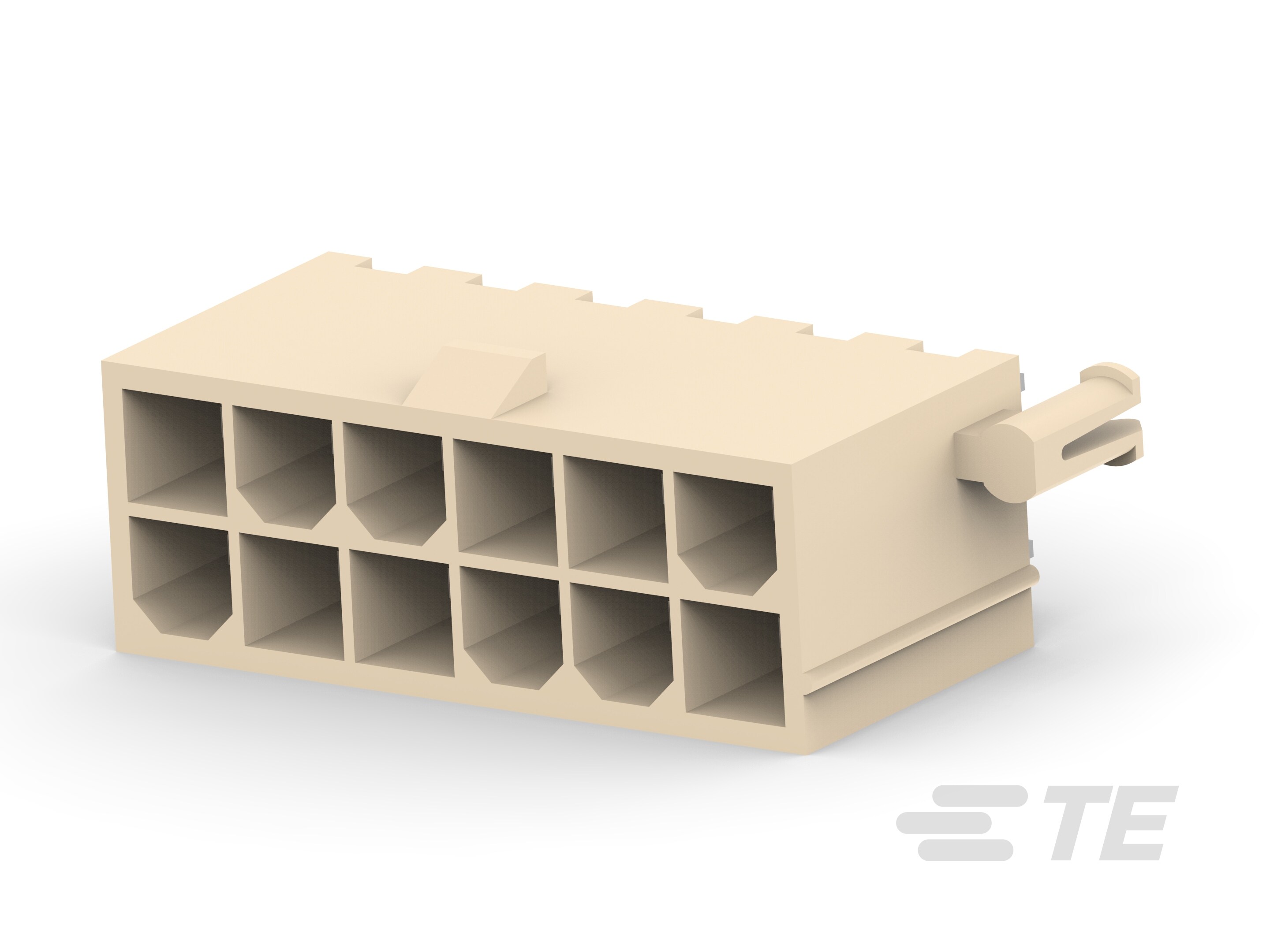

TE Connectivity AMP Connectors 1775099-8	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp	Board Lock	UL94 V-0	Shrouded - 4 Wall	Male Pin	All	12	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin
TE Connectivity AMP Connectors 2-1775099-7	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp	Board Lock	UL94 V-0	Shrouded - 4 Wall	Male Pin	All	20	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin

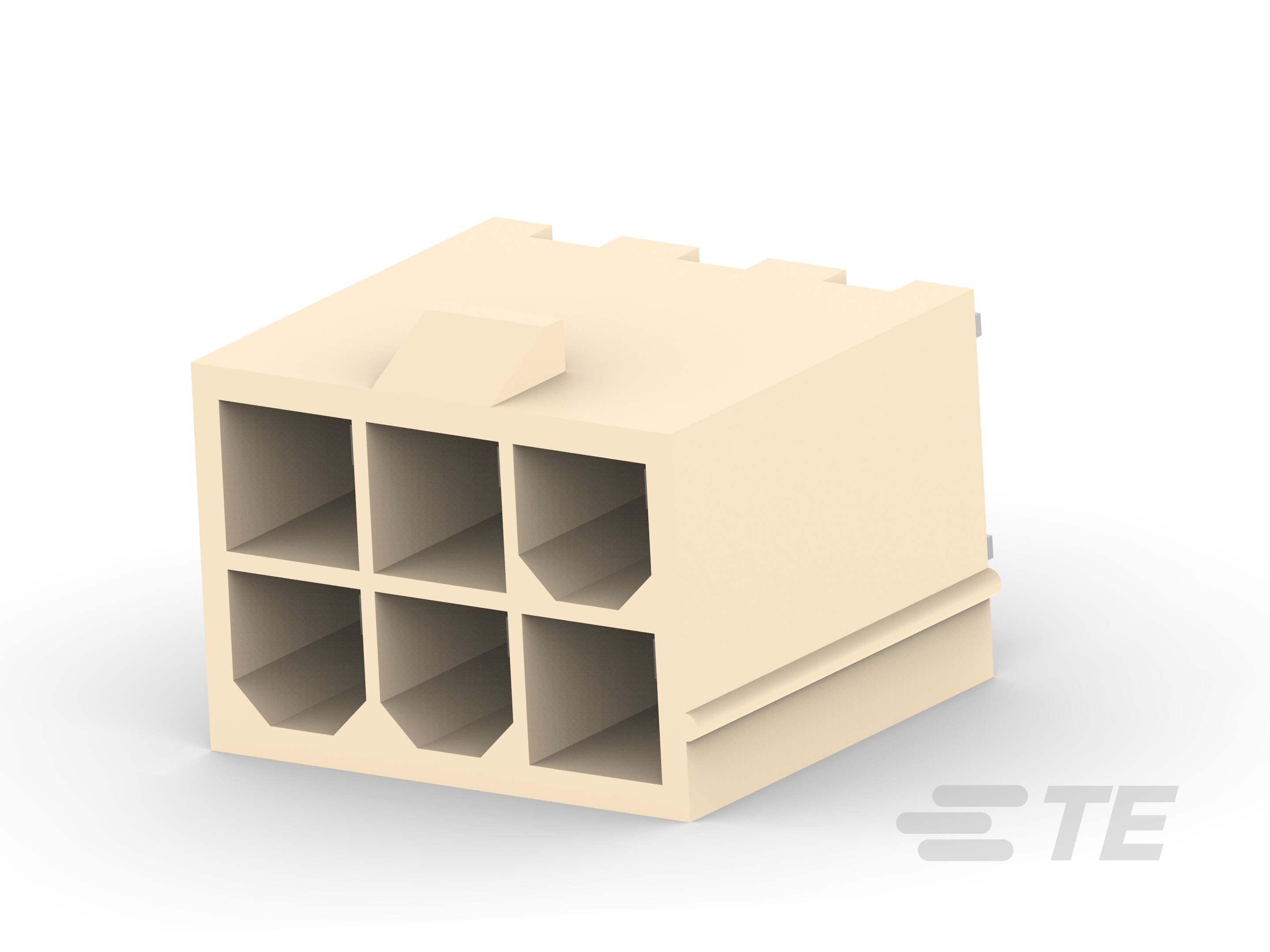

TE Connectivity AMP Connectors 4-1775099-1	9 A	0.126 in	Header	0.165 in	85 °C	-25 °C	Square	120 µin	0.165 in	Solder	250 V	Tin	Locking Ramp		UL94 V-0	Shrouded - 4 Wall	Male Pin	All	6	Nylon 9T Polyamide (PA9T)	Through Hole	Tin	2	0.504 in	Brass	Ivory	120 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATX Power Connector

Datasheet

ATX 4.2 Pitch POWER CONNECTOR
