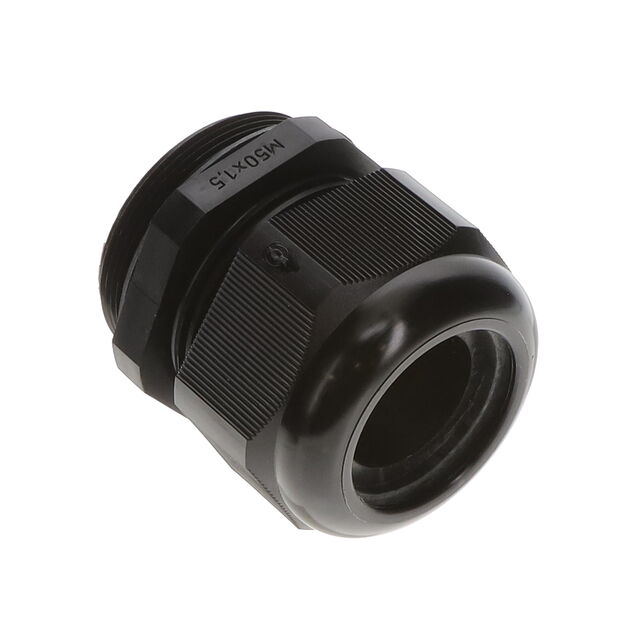

Specification	50.650 PA/RSW

Color	Black
Includes	Sealing Ring
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nylon 6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	1.378 in
Outside Cable Diameter (Min)	0.827 in
Thread Diameter	50 mm
Thread Length	0.472 in
Thread Pitch	1.5 mm
Type	Cable Gland

50.65 Series

Part	Color	Outside Cable Diameter (Max)	Material	Thread Length	Type	Operating Temperature (Max)	Operating Temperature (Min)	Includes	Thread Diameter	Thread Pitch	Ingress Protection IP Rating	Ingress Protection Description	Outside Cable Diameter (Min)
Jacob GmbH 50.650 PA/SW	Black	1.378 in	Nylon 6 Polyamide (PA6)	0.472 in	Cable Gland	100 °C	-40 °C	Sealing Ring	50 mm	1.5 mm	IP68	Dust Tight Waterproof	1.063 in
Jacob GmbH 50.650 PA/RSW	Black	1.378 in	Nylon 6 Polyamide (PA6)	0.472 in	Cable Gland	100 °C	-40 °C	Sealing Ring	50 mm	1.5 mm	IP68	Dust Tight Waterproof	0.827 in
Jacob GmbH 50.650M/EMV/L	Silver	1.378 in	Brass Nickel Plated	0.551 in	Cable Gland	100 °C	-40 °C	O-Ring Seal	50 mm	1.5 mm	IP68	Dust Tight Waterproof	0.945 in
Jacob GmbH 50.650 M/EMVD	Silver	1.378 in	Brass Nickel Plated	0.354 in	Cable Gland	100 °C	-40 °C	O-Ring Seal	50 mm	1.5 mm	IP68	Dust Tight Waterproof	0.945 in
Jacob GmbH 50.650 PA/FL	Gray	1.378 in	Nylon 6 Polyamide (PA6)	0.472 in	Cable Gland	100 °C	-40 °C	Sealing Ring	50 mm	1.5 mm	IP68	Dust Tight Waterproof	1.063 in
Jacob GmbH 50.650 PA/SWL	Black	1.378 in	Nylon 6 Polyamide (PA6)	0.709 in	Cable Gland	100 °C	-40 °C	Sealing Ring	50 mm	1.5 mm	IP68	Dust Tight Waterproof	1.063 in
Jacob GmbH 50.650 PA7035	Gray	1.378 in	Nylon 6 Polyamide (PA6)	0.472 in	Cable Gland	100 °C	-40 °C	Sealing Ring	50 mm	1.5 mm	IP68	Dust Tight Waterproof	1.063 in
Jacob GmbH 50.650 M/EMV	Silver	1.378 in	Brass Nickel Plated	0.354 in	Cable Gland	100 °C	-40 °C	O-Ring Seal	50 mm	1.5 mm	IP68	Dust Tight Waterproof	0.945 in
Jacob GmbH 50.650 M	Silver	1.378 in	Brass Nickel Plated	0.354 in	Cable Gland	100 °C	-40 °C	O-Ring Seal	50 mm	1.5 mm	IP68	Dust Tight Waterproof	0.945 in
Jacob GmbH 50.650 ES	Silver	1.378 in	Stainless Steel	0.354 in	Cable Gland	100 °C	-40 °C	O-Ring Seal	50 mm	1.5 mm	IP68	Dust Tight Waterproof	0.945 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

50.650 PA/RSW | Datasheet
