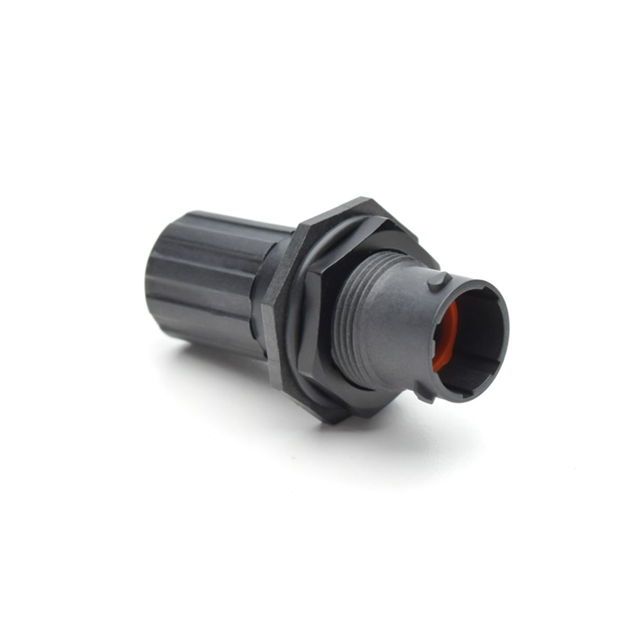

CIRCULAR CONNECTOR, ECOMATE AQUARIUS SERIES, JAM NUT RECEPTACLE, 4 CONTACTS

Find alt

Alpha

RTS710N4PHEC03

Active

McGill Microwave Systems

CIRCULAR CONNECTOR, ECOMATE AQUARIUS SERIES, JAM NUT RECEPTACLE, 4 CONTACTS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Aquarius Series

Amphenol Sine Systems’ ecomate® Aquarius™ Waterproof Connectors provide an IP67/69K waterproof rating (in mated condition), are corrosion-resistant, and feature a thermoplastic UL94 V-0 shell and low-profile housing for Indoor/Outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes and 27 insert arrangements.Additional features include optional In-Line, Jam-Nut, Square-Flanged, PCB, and End Cap configurations.

Technical Specifications

Parameters and characteristics for this part

Specification	RTS710N4PHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Includes	Gasket, Connector, Seal, Backshell, O-Ring, Ring
Includes Total Count	6 pcs
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	4 mm
Shielding	Unshielded
Type	For Male Pins

Aquarius Series

Part	Material Flammability Rating	Features	Type	Insert Material	Mounting Feature	Contact Shape	Contact Size	Shielding	Connector Type	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type	Fastening Type	Shell Material	Note	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Length	Shell Size - Insert Width	Housing Color	Contact Type	Orientation	Includes	Includes Total Count	Contact Finish - Mating	Primary Material	Voltage Rating	Voltage Rating (Type)	Termination	Color	Current Rating	Applications	Contact Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Material	Accessory Type
McGill Microwave Systems RTS712N8PHEC03	UL94 V-0	Backshell	For Male Pins	Thermoplastic	Bulkhead Front Side Nut	Circular	16 S	Unshielded	Receptacle Housing	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	12 mm	8 mm	Black	Crimp	N (Normal)	Backshell Connector Gasket O-Ring Ring Seal	6 pcs
McGill Microwave Systems RTS08N4P	UL94 V-0			Chloroprene Rubber CR	Flange			Unshielded	Male Pins Receptacle	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic		105 °C	-40 °C	8 mm	4 mm			N (Normal)			Gold	Plastic	250 V	DC	Solder Cup	Black	7 A	Automation Industrial Instrumentation Marine Telecom Transportation	Copper Alloy
McGill Microwave Systems RTS6BS14N12SHEC03	UL94 V-0	Backshell Coupling Nut	For Female Sockets	Thermoplastic		Circular	16 S	Unshielded	Plug Housing	12	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	14 mm	12 mm	Black	Crimp	N (Normal)	Backshell Connector O-Ring Ring Seal Washer	6 pcs
McGill Microwave Systems RTS1BS16N4P03	UL94 V-0	Backshell	For Male Pins	Thermoplastic		Circular	8	Unshielded	Receptacle Housing	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	16 mm	4 mm	Black	Crimp	N (Normal)	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
McGill Microwave Systems RTS718N8S03	UL94 V-0		For Female Sockets		Bulkhead Front Side Nut		2.5 mm	Unshielded	Receptacle Housing	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic				18 mm	8 mm	Black	Crimp	N (Normal)
McGill Microwave Systems RTS6BS18N23SHEC03	UL94 V-0	Backshell Coupling Nut	For Female Sockets	Thermoplastic		Circular	16 S	Unshielded	Plug Housing	23	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C			Black	Crimp	N (Normal)	Backshell Connector O-Ring Ring Seal Washer	6 pcs										23	18
McGill Microwave Systems RTS1BS14N7S03	UL94 V-0	Backshell	For Female Sockets	Thermoplastic		Circular	16 S	Unshielded	Receptacle Housing	7	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	14 mm	7 mm	Black	Crimp	N (Normal)	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
McGill Microwave Systems RTS12CCRR		Dust Tight Water Resistant Waterproof																													Red						12	12	ecomate® Aquarius™ Series Connectors	Thermoplastic	Coding Ring
McGill Microwave Systems RTS716N09P03	UL94 V-0		For Male Pins	Thermoplastic	Bulkhead Front Side Nut	Circular	2.5 mm 16	Unshielded	Receptacle Housing	9	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	16 mm	9 mm	Black	Crimp	N (Normal)	Connector Gasket Nut O-Ring	4 pcs
McGill Microwave Systems RTS710N2P03	UL94 V-0		For Male Pins	Thermoplastic	Bulkhead Front Side Nut	Circular	16 20	Unshielded	Receptacle Housing	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	10 mm	2 mm	Black	Crimp	N (Normal)	Connector Gasket Nut O-Ring	4 pcs
