Aquarius Series

Catalog

STANDARD CIRCULAR CONNECTOR JM NUT RCPT W ENDCAP 8 POS SZ 12 PIN

Part	Material Flammability Rating	Features	Type	Insert Material	Mounting Feature	Contact Shape	Contact Size	Shielding	Connector Type	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type	Fastening Type	Shell Material	Note	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Length	Shell Size - Insert Width	Housing Color	Contact Type	Orientation	Includes	Includes Total Count	Contact Finish - Mating	Primary Material	Voltage Rating	Voltage Rating (Type)	Termination	Color	Current Rating	Applications	Contact Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Material	Accessory Type

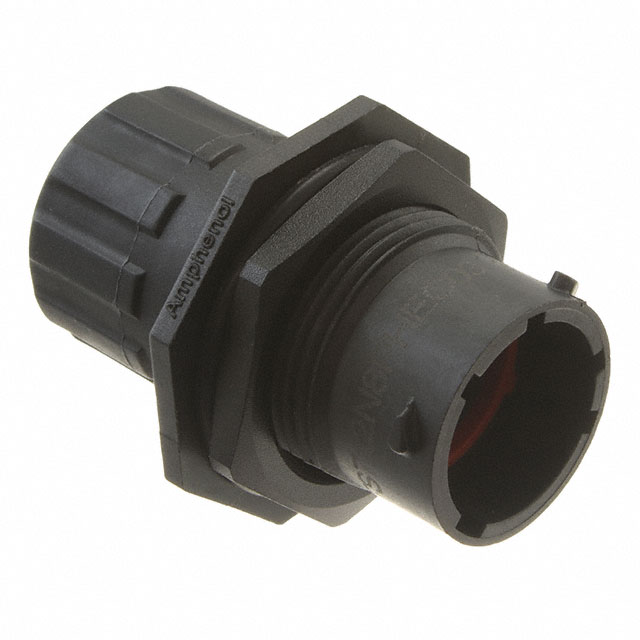

McGill Microwave Systems RTS712N8PHEC03	UL94 V-0	Backshell	For Male Pins	Thermoplastic	Bulkhead Front Side Nut	Circular	16 S	Unshielded	Receptacle Housing	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	12 mm	8 mm	Black	Crimp	N (Normal)	Backshell Connector Gasket O-Ring Ring Seal	6 pcs
McGill Microwave Systems RTS08N4P	UL94 V-0			Chloroprene Rubber CR	Flange			Unshielded	Male Pins Receptacle	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic		105 °C	-40 °C	8 mm	4 mm			N (Normal)			Gold	Plastic	250 V	DC	Solder Cup	Black	7 A	Automation Industrial Instrumentation Marine Telecom Transportation	Copper Alloy
McGill Microwave Systems RTS6BS14N12SHEC03	UL94 V-0	Backshell Coupling Nut	For Female Sockets	Thermoplastic		Circular	16 S	Unshielded	Plug Housing	12	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	14 mm	12 mm	Black	Crimp	N (Normal)	Backshell Connector O-Ring Ring Seal Washer	6 pcs
McGill Microwave Systems RTS1BS16N4P03	UL94 V-0	Backshell	For Male Pins	Thermoplastic		Circular	8	Unshielded	Receptacle Housing	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	16 mm	4 mm	Black	Crimp	N (Normal)	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
McGill Microwave Systems RTS718N8S03	UL94 V-0		For Female Sockets		Bulkhead Front Side Nut		2.5 mm	Unshielded	Receptacle Housing	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic				18 mm	8 mm	Black	Crimp	N (Normal)

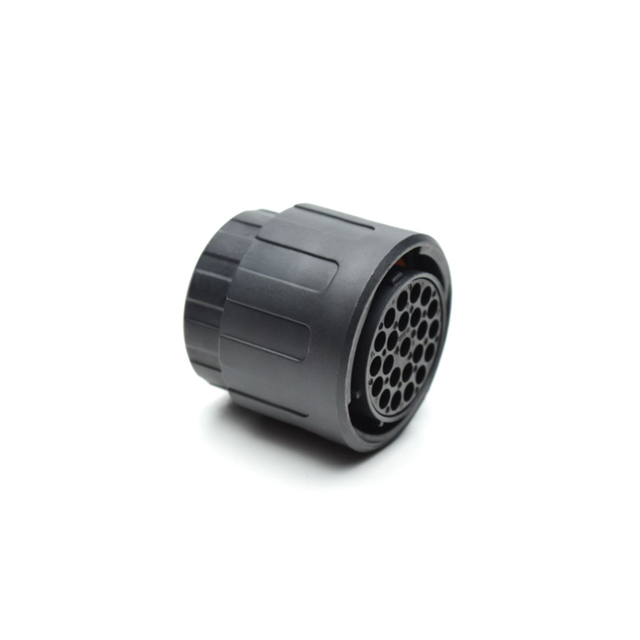

McGill Microwave Systems RTS6BS18N23SHEC03	UL94 V-0	Backshell Coupling Nut	For Female Sockets	Thermoplastic		Circular	16 S	Unshielded	Plug Housing	23	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C			Black	Crimp	N (Normal)	Backshell Connector O-Ring Ring Seal Washer	6 pcs										23	18

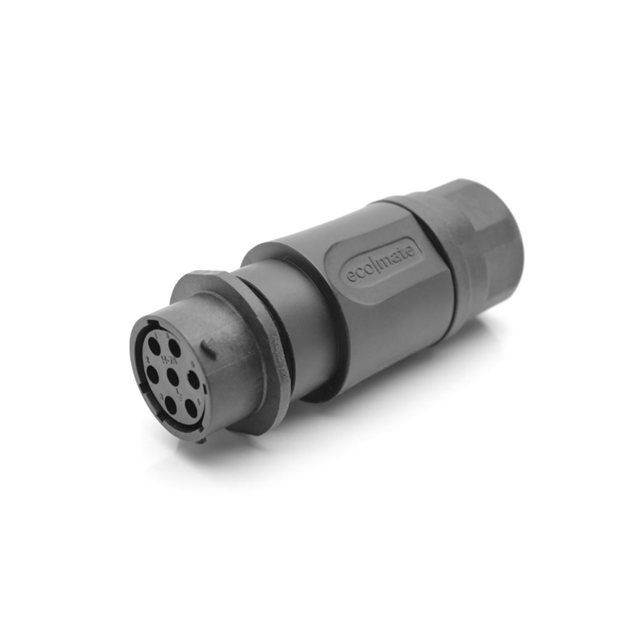

McGill Microwave Systems RTS1BS14N7S03	UL94 V-0	Backshell	For Female Sockets	Thermoplastic		Circular	16 S	Unshielded	Receptacle Housing	7	IP67 IP69K	Dust Tight Water Resistant Waterproof	Free Hanging (In-Line)	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	14 mm	7 mm	Black	Crimp	N (Normal)	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
McGill Microwave Systems RTS12CCRR		Dust Tight Water Resistant Waterproof																													Red						12	12	ecomate® Aquarius™ Series Connectors	Thermoplastic	Coding Ring
McGill Microwave Systems RTS716N09P03	UL94 V-0		For Male Pins	Thermoplastic	Bulkhead Front Side Nut	Circular	2.5 mm 16	Unshielded	Receptacle Housing	9	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	16 mm	9 mm	Black	Crimp	N (Normal)	Connector Gasket Nut O-Ring	4 pcs
McGill Microwave Systems RTS710N2P03	UL94 V-0		For Male Pins	Thermoplastic	Bulkhead Front Side Nut	Circular	16 20	Unshielded	Receptacle Housing	4	IP67 IP69K	Dust Tight Water Resistant Waterproof	Panel Mount	Bayonet Lock	Thermoplastic	Contacts Not Included	125 °C	-40 °C	10 mm	2 mm	Black	Crimp	N (Normal)	Connector Gasket Nut O-Ring	4 pcs
