Specification	SF2911-60172

Body Material	Stainless Steel
Cable Group	Flexible
Cable Group Size	0.047 "
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

SF2911 Series

Part	Mating Cycles	Insertion Loss	Operating Temperature (Min)	Operating Temperature (Max)	Includes	Includes Total Count	Dielectric Material	Body Material	Center Contact Plating	Connector Style	Housing Color	Fastening Type	Connector Type	Frequency - Max	Impedance	Mounting Type	Number of Ports	Contact Termination	Shield Termination	Center Contact Material	Features	Cable Group Size	Cable Group	Mounting Feature

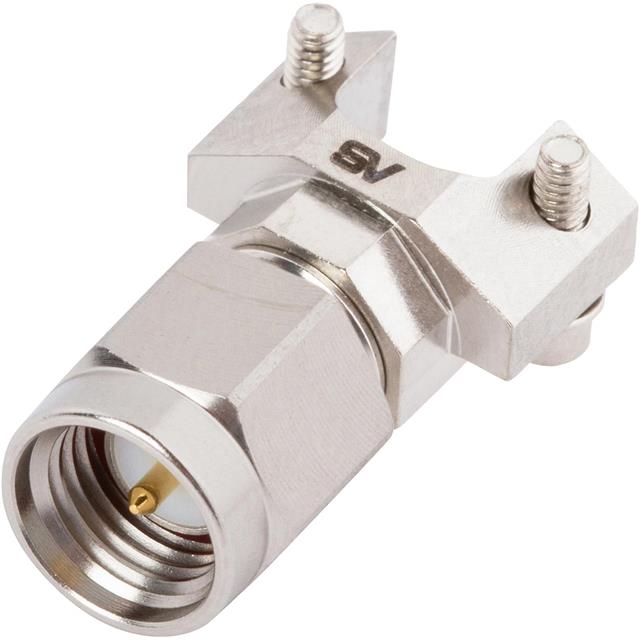

McGill Microwave Systems SF2911-60958	500 cycles	0.154 dB	-65 °C	165 °C	Connector Screws	3 pcs	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	SMA	Silver	Threaded	Male Pin Plug	26.5 GHz	50 Ohm	Board Edge End Launch	1	Compression	Screw	Beryllium Copper	Mounting Hardware
McGill Microwave Systems SF2911-60172	500 cycles						Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	SMA	Silver	Threaded	Male Pin Plug	18 GHz	50 Ohm	Free Hanging (In-Line)	1	Solder	Solder	Beryllium Copper		0.047 "	Flexible
McGill Microwave Systems SF2911-60973-2S	500 cycles		-65 °C	165 °C			Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	SMA	Silver	Threaded	Male Pin Plug	26.5 GHz	50 Ohm	Surface Mount		Compression	Screw	Beryllium Copper	Mounting Hardware			Flange

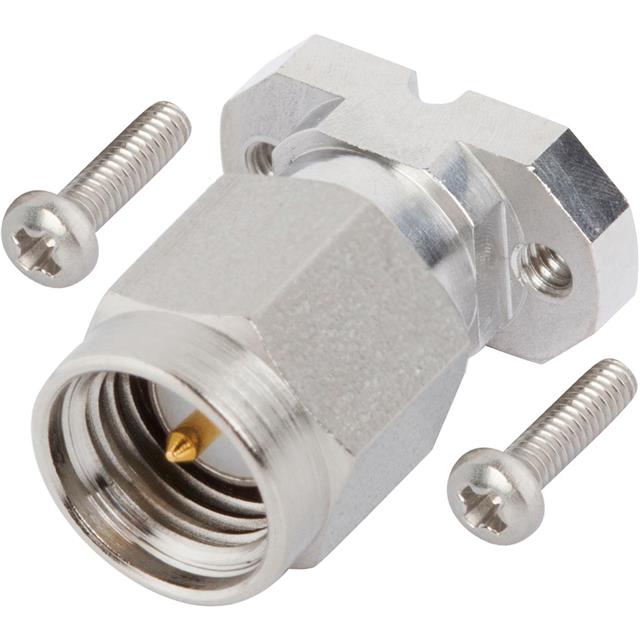

McGill Microwave Systems SF2911-60973-1S	500 cycles		-65 °C	165 °C			Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	SMA	Silver	Threaded	Male Pin Plug	26.5 GHz	50 Ohm	Surface Mount		Compression	Screw	Beryllium Copper	Mounting Hardware			Flange

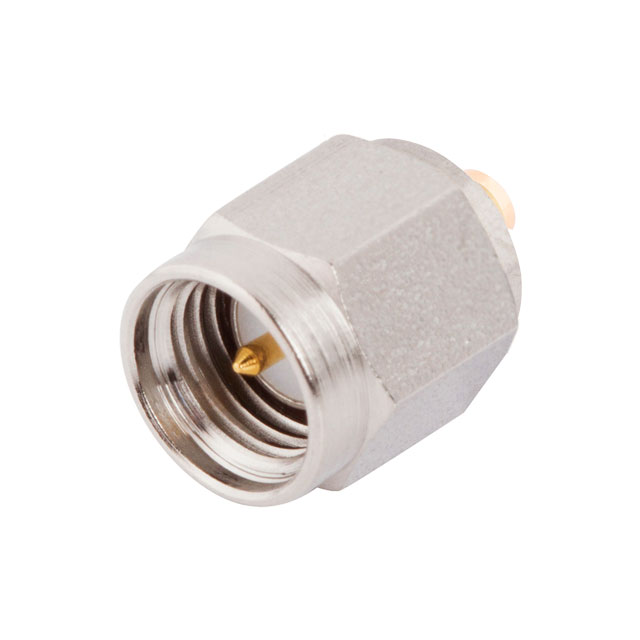

McGill Microwave Systems SF2911-60242	500 cycles									SMA	Silver	Threaded	Male Pin Plug		50 Ohm	Free Hanging (In-Line)	1	Solder	Solder			0.065 in	Flexible
McGill Microwave Systems SF2911-60973	500 cycles		-65 °C	165 °C			Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	SMA	Silver	Threaded	Male Pin Plug	26.5 GHz	50 Ohm	Surface Mount		Compression	Screw	Beryllium Copper				Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Technical Data Sheet EN
