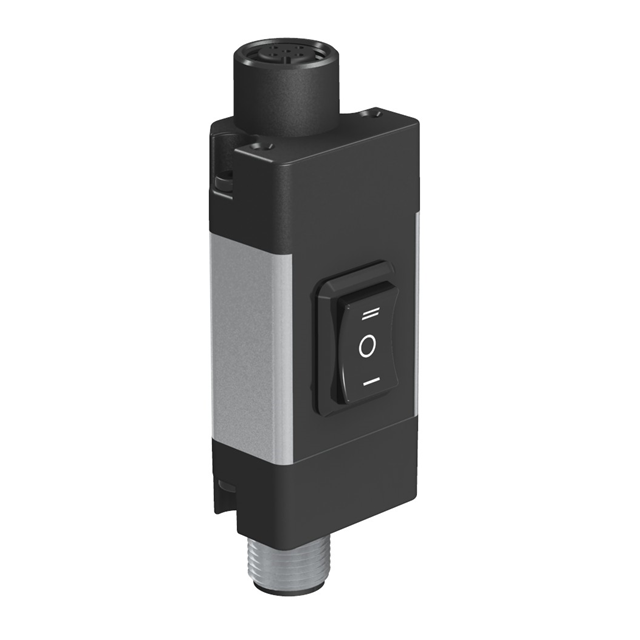

WLS28-2PBQ

Active

BANNER ENGINEERING

ACCESSORY: ROCKER SWITCH - 3 POSITION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WLS28-2PBQ

Active

BANNER ENGINEERING

ACCESSORY: ROCKER SWITCH - 3 POSITION

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WLS28-2PBQ	WLS28 Series

Actuator Marking	I O II	I O II, O I
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CE	cULus, CE
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	4 A	4 A
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Cascadable, High/Low/Off Switching, Motion Detection
Housing Material	-	Aluminum (Al)
Illumination Color	-	White, Cool, Red, Green, Blue, Yellow, Warm, Ultraviolet
Ingress Protection	IP50	IP50, IP69K, IP65, IP67
Length	-	5.71 - 38.98 in
Length	-	145 - 990 mm
Length	-	16.93 - 44.49 in
Length	-	430 - 1130 mm
Lens Type	-	Flat, Diffused, Clear, Domed
Luminous Flux	-	110 - 3200 lm
Luminous Flux	-	475 - 2600 lm
Luminous Flux	-	570 - 2280 lm
Luminous Flux	-	400 - 1600 lm
Luminous Flux	-	125 - 500 lm
Luminous Flux	-	185 - 740 lm
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Chassis Mount
Operating Temperature	-	-40 - -20 °C
Operating Temperature	-	60 - 70 °C
Profile (W x H)	-	21 mm
Profile (W x H)	-	28 mm
Profile (W x H)	-	0.83 - 32.2 in
Profile (W x H)	-	1.1 - 28 in
Profile (W x H)	-	1.27 in
Profile (W x H)	-	1.1 in
Rated Life	-	75000 Hours
Switch Function	On-Off-On	On-Off-On, On-Off
Termination Style	Connector	Connector (M12), Connector, Cable Leads
Voltage - Supply	-	12 V
Voltage - Supply	-	30 VDC
Voltage Rating - DC	30 V	30 V

WLS28 Series

WLS28-2 WORK LIGHT STRIP; DIFFUS

...

Part	Termination Style	Features	Length	Length	Lens Type	Luminous Flux	Rated Life	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Illumination Color	Voltage - Supply [Min]	Voltage - Supply [Max]	Approval Agency	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Housing Material	Actuator Type	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Switch Function	Electrical Life	Color - Actuator/Cap	Actuator Marking	Length [x]	Length [x]
BANNER ENGINEERING WLS28-2CW990DXQ	Connector (M12)	Cascadable	38.98 in	990 mm	Diffused, Flat	2800 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)
BANNER ENGINEERING WLS28-2PBQ	Connector									IP50				CE						Concave (Curved)	30 V	Flange, Panel Mount	4 A	On-Off-On	10000 Cycles	Black	I O II
BANNER ENGINEERING WLS28-2XWR-1130DXQ	Connector (M12)	Cascadable			Diffused, Flat	600 lm, 1425 lm	75000 Hours	-40 °C	70 °C	IP50	Red, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)									44.49 in	1130 mm
BANNER ENGINEERING WLS28-2XW430XQ	Connector (M12)	Cascadable			Clear, Flat	1200 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)									16.93 "	430 mm
BANNER ENGINEERING WLS28-2CW430XQ	Connector (M12)	Cascadable			Clear, Flat	1200 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)									16.93 "	430 mm
BANNER ENGINEERING WLS28-2XW710XQ	Connector (M12)	Cascadable	27.95 "	710 mm	Clear, Flat	2000 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)
BANNER ENGINEERING WLS28-2CW145XQ	Connector (M12)	Cascadable	5.71 in	145 mm	Clear, Flat	400 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)
BANNER ENGINEERING WLS28-2CW850DXQ	Connector (M12)	Cascadable			Diffused, Flat	2400 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)
BANNER ENGINEERING WLS28-2XW285XQ	Connector (M12)	Cascadable			Clear, Flat	800 lm	75000 Hours	-40 °C	70 °C	IP50	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)
BANNER ENGINEERING WLS28-2XW285SQ	Connector (M12)	Cascadable			Clear, Flat	800 lm	75000 Hours	-40 °C	70 °C	IP65, IP67, IP69K	Cool, White	12 V	30 VDC	CE, cULus	21 mm	28 mm	0.83 in	1.1 in	Aluminum (Al)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00
Newark	Each	1	$ 50.00

Description

General part information

WLS28 Series

Rocker Switch 4A (DC) Panel Mount, Flange
