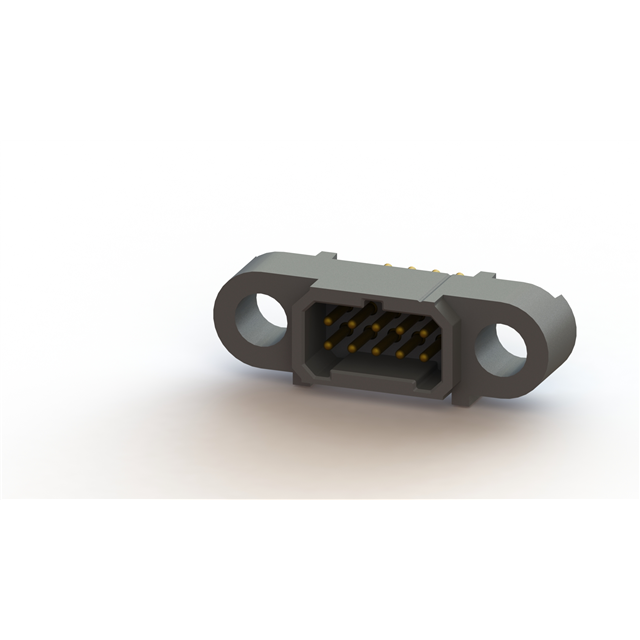

A221Y10VXX
ActiveNicomatic
MALE 10POS STRAIGHT TRGH 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A221Y10VXX
ActiveNicomatic
MALE 10POS STRAIGHT TRGH 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A221Y10VXX | A221Y10V Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 0.15 µm | 0.15 µm |
| Contact Finish Thickness - Mating | 5.9 µin | 5.9 µin |
| Contact Finish Thickness - Post | 0.15 µm | 0.15 µm |
| Contact Finish Thickness - Post | 5.9 µin | 5.9 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 2.5 A | 2.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Mating Flange | Mounting Flange, Mating Flange, Mounting Hardware |
| Insulation Color | Black | Black |
| Insulation Height | 0.161 in | 0.161 in |
| Insulation Height | 4.1 mm | 4.1 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 10 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.039 in | 0.039 in |
| Pitch - Mating | 1 mm | 1 mm |
| Row Spacing - Mating | 0.039 " | 0.039 " |
| Row Spacing - Mating | 1 mm | 1 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
A221Y10V Series
MALE 10POS STRAIGHT TRGH 1.27MM
| Part | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Contact Finish - Post | Connector Type | Contact Material | Mounting Type | Style | Material Flammability Rating | Number of Positions Loaded | Number of Rows | Voltage Rating | Insulation Height | Insulation Height | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Contact Type | Contact Shape | Current Rating (Amps) | Termination | Pitch - Mating | Pitch - Mating | Insulation Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nicomatic A221Y10V22 | 10 | 0.15 µm | 5.9 µin | -65 ░C | 200 °C | Shrouded - 4 Wall | Gold | Header | Copper Alloy | Through Hole | Board to Board, Cable | UL94 V-0 | All | 2 | 600 VAC | 0.161 in | 4.1 mm | Gold | 0.039 " | 1 mm | Liquid Crystal Polymer (LCP) | 0.15 µm | 5.9 µin | Mating Flange, Mounting Flange, Mounting Hardware | Male Pin | Circular | 2.5 A | Solder | 0.039 in | 1 mm | Black | |
Nicomatic A221Y10VXX | 10 | 0.15 µm | 5.9 µin | -65 ░C | 200 °C | Shrouded - 4 Wall | Gold | Header | Copper Alloy | Through Hole | Board to Board, Cable | UL94 V-0 | All | 2 | 600 VAC | 0.161 in | 4.1 mm | Gold | 0.039 " | 1 mm | Liquid Crystal Polymer (LCP) | 0.15 µm | 5.9 µin | Mating Flange | Male Pin | Circular | 2.5 A | Solder | 0.039 in | 1 mm | Black | Push-Pull |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.31 | |
| 25 | $ 9.27 | |||
| 100 | $ 8.35 | |||
| 500 | $ 7.53 | |||
| 1000 | $ 7.15 | |||
Description
General part information
A221Y10V Series
Connector Header Through Hole 10 position 0.039" (1.00mm)
