2-1102602-5
ActiveTE Connectivity AMP Connectors

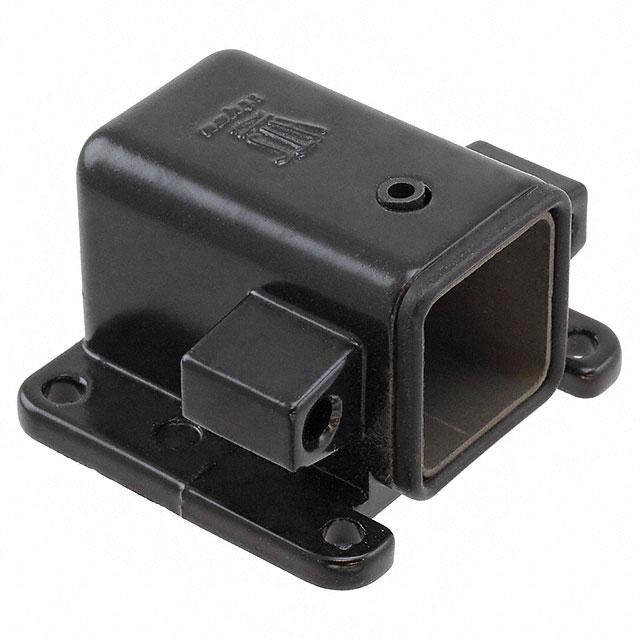

CONN BASE SIDE ENTRY SZ1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1102602-5
ActiveTE Connectivity AMP Connectors
CONN BASE SIDE ENTRY SZ1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1102602-5 |
|---|---|
| Connector Type | Base - Panel Mount 90° |
| Housing Color | Black |
| Housing Finish | Corrosion Coating |
| Housing Material | Aluminum |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Size | 1 Gallon |
| Size / Dimension [x] | 51 mm |
| Size / Dimension [x] | 2.008 in |
| Size / Dimension [y] | 1.89 in |
| Size / Dimension [y] | 48 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 127.31 | |
| 10 | $ 105.59 | |||
| 25 | $ 98.06 | |||
| 50 | $ 92.74 | |||
| 100 | $ 90.08 | |||
1102602 Series
CONN BASE SIDE ENTRY SZ1
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size | Housing Color | Housing Finish | Style | Connector Type | Housing Material | Ingress Protection | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102602-5 | 1.22 in | 31 mm | 51 mm | 1.89 in | 2.008 in | 48 mm | 1 Gallon | Black | Corrosion Coating | Side Entry | Base - Panel Mount 90° | Aluminum | IP68 - Dust Tight, Waterproof | Screw Locks on Hood |
Description
General part information
1102602 Series
Base - Panel Mount 90° Connector Side Entry 1 IP68 - Dust Tight, Waterproof
