807-037-559-101
ActiveEDAC Inc.

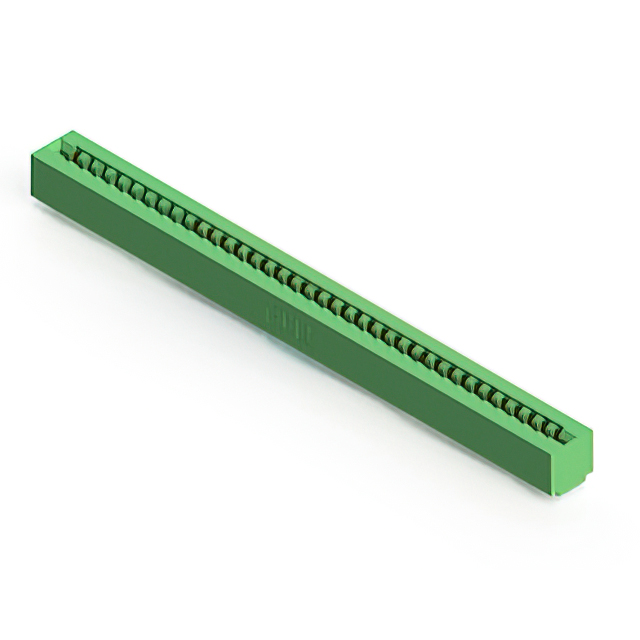

CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-037-559-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 37POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-037-559-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
807-037 Series
...
| Part | Card Type | Mounting Type | Number of Rows | Termination | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Gender | Contact Material | Contact Type | Termination Rows | Material - Insulation | Color | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Through Hole Right Angle | 1 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Single | Tin | 125 °C | -40 °C | 37 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | ||||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Single | Tin | 125 °C | -40 °C | 37 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 2 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Dual | Tin | 125 °C | -40 °C | 74 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 2 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | Gold | 125 °C | -40 °C | 74 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 2 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Dual | Gold | 125 °C | -40 °C | 74 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 3.25 mm | 0.128 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 1 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Single | Tin | 125 °C | -40 °C | 37 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | ||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 2 | Solder Eyelet(s) | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | Gold | 125 °C | -40 °C | 74 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Non Specified - Dual Edge | Through Hole | 2 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | 125 °C | -40 °C | 74 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Non Specified - Single Edge | Through Hole Right Angle | 1 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Gold | 125 °C | -40 °C | 37 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Non Specified - Dual Edge | Through Hole Right Angle | 2 | Solder | 37 | 37 | 37 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | 125 °C | -40 °C | 74 | Female | Copper Alloy | Semi Bellows | 1 | Diallyl Phthalate (DAP) | Green | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
807-037 Series
37 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
