103653-4
ActiveTE Connectivity AMP Connectors

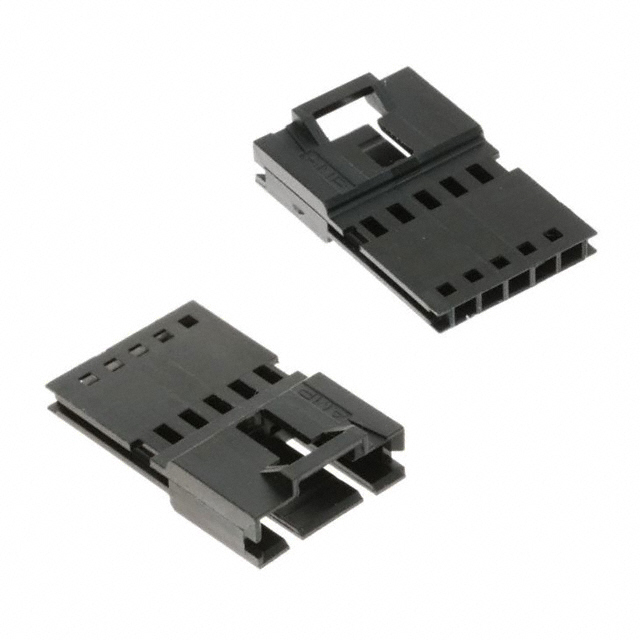

CONN PLUG HSG 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
103653-4
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 5POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103653-4 | 103653 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT) | Liquid Crystal Polymer (LCP), Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 2 - 24 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.35 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.03 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.77 | |||
| 2500 | $ 0.71 | |||
103653 Series
CONN PLUG HSG 10POS 2.54MM
| Part | Number of Positions | Contact Type | Note | Mounting Type | Connector Type | Color | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Pitch [x] | Pitch [x] | Contact Termination | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103653-9 | 10 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 2-103653-3 | 24 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 103653-4 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Polybutylene Terephthalate (PBT) | |
TE Connectivity AMP Connectors 103653-8 | 9 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 103653-1 | 2 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Polybutylene Terephthalate (PBT) |
TE Connectivity AMP Connectors 2-103653-1 | 22 positions | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 103653-7 | 8 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 1-103653-1 | 12 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 1-103653-2 | 13 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 2-103653-2 | 23 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) |
TE Connectivity AMP Connectors 2-103653-4 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Liquid Crystal Polymer (LCP) | |
TE Connectivity AMP Connectors 103653-2 | Male Pin | Contacts Not Included | Free Hanging (In-Line) | Plug | Black | Latch Holder | -65 ░C | 105 ░C | 1 | 2.54 mm | 0.1 in | Crimp | Polybutylene Terephthalate (PBT) |
Description
General part information
103653 Series
5 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
