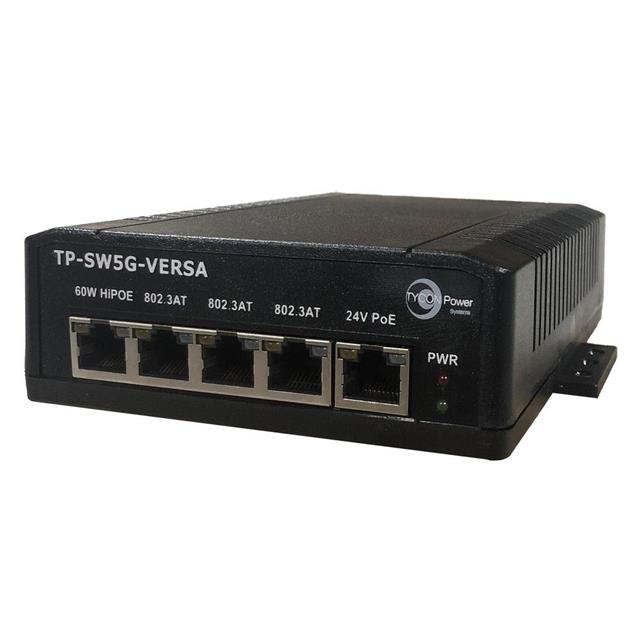

TP-SW5G-VERSA

Active

Tycon Systems Inc.

5PRT UNMNG GIGE VERSA POE L2 NET

Search across all available documentation for this part.

Active

Tycon Systems Inc.

5PRT UNMNG GIGE VERSA POE L2 NET

Technical Specifications

Parameters and characteristics commom to parts in this series

12-56V 5 PORT HIGH POWER (1A/POR

Part	Voltage - Input [Min]	Voltage - Input [Max]	PoE Ports [custom]	Mounting Type	Type	Copper Type	Connector Type	Number of Ports	Configuration	Copper Ports	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage - Input
Tycon Systems Inc. TP-SW5G-NC	12 V	56 VDC	5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5
Tycon Systems Inc. TP-SW5G-VERSA	44 V	57 V	5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5	70 °C	-30 ░C
Tycon Systems Inc. TP-SW5GNC-OUT48			5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5			IP65, NEMA 4X	48 VDC
Tycon Systems Inc. TP-SW5G-24	12 V	36 V	5	DIN Rail	Switch	10, 100, 1000	RJ-45, RJ45	5	Fixed	5	70 °C	-40 °C
Tycon Systems Inc. TP-SW5G-D	42 VDC	57 V	5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5
Tycon Systems Inc. TP-SW5GNC-OUT24			5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5			IP65, NEMA 4X	24 V
Tycon Systems Inc. TP-SW5G-24HP	12 V	36 V	5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5	70 °C	-40 °C
Tycon Systems Inc. TP-SW5G-MULTI	12 V	57 V	5	DIN Rail	Switch	10, 100, 1000	RJ45	5	Fixed	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Network Switch 5 Ports
