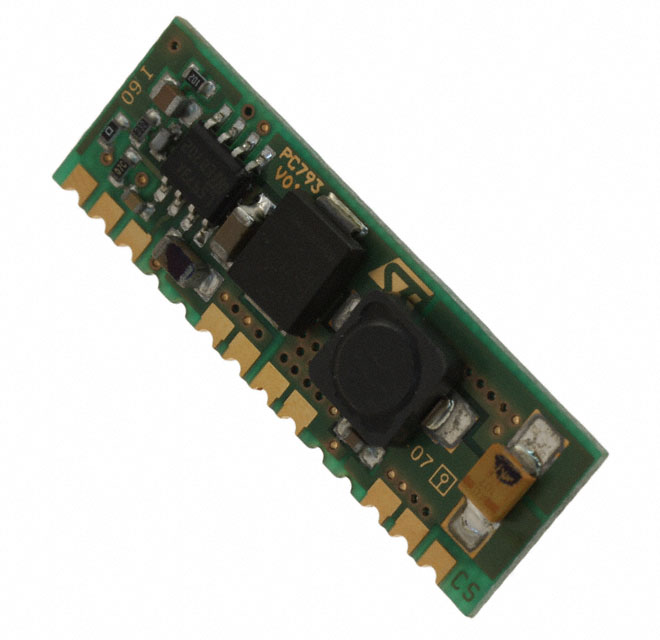

GS-R24FS0001.8

Obsolete

STMicroelectronics

DC DC CONVERTER 1.235-5.5V

Search across all available documentation for this part.

Obsolete

STMicroelectronics

DC DC CONVERTER 1.235-5.5V

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Type	Number of Outputs	Applications	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max] [custom]	Features
STMicroelectronics GS-R24FS0001.8	83 %	16 V	10-SMD Module	Surface Mount	Non-Isolated PoL Module	1	ITE (Commercial)	1.8 A	38.7 mm	0.5 in	12.7 mm	0.18 in	1.52 in	4.5 mm	5.5 V	1.235	-25 °C	85 °C	35 V
STMicroelectronics GS-R24F0002.0	85 %	16 V	12-SMD Module	Surface Mount	Non-Isolated PoL Module	1	ITE (Commercial)	2 A	26.7 mm	0.28 "	7 mm	0.89 in	1.05 in	22.6 mm	5.5 V	1.235	-25 °C	85 °C	35 V	OCP OTP OVP Remote On/Off
STMicroelectronics GS-R24FV0001.8	83 %	16 V	10-SIP Module	Through Hole	Non-Isolated PoL Module	1	ITE (Commercial)	1.8 A	38.7 mm	0.5 in	12.7 mm	0.18 in	1.52 in	4.5 mm	5.5 V	1.235	-25 °C	85 °C	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 1.235 ~ 5.5V 1.8A 16V - 35V Input

Technical documentation and resources

No documents available
