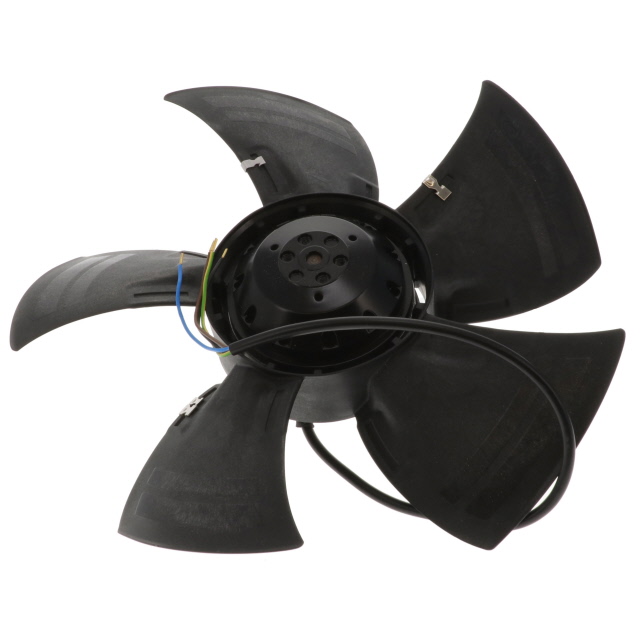

Specification	A4E300-AS72-01

Approval Agency	UL, CCC, EAC, CE
Bearing Type	Ball
Current Rating	0.42 A
Fan Type	Tubeaxial
Features	Thermal Overload Protection (TOP), Capacitor
Ingress Protection	IP44
Material - Blade	PP, Steel, Polypropylene
Operating Temperature (Max)	122 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	96 W
RPM	1500 RPM
Size / Dimension Diameter	300 mm
Size / Dimension Shape	Round
Static Pressure	0.241 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	230 VAC
Weight	3.7 lbs
Width	73.4 mm

A4E300 Series

Part	Fan Type	Static Pressure	Operating Temperature (Max)	Operating Temperature (Min)	Width	Features	Approval Agency	Power (Watts)	Voltage - Rated	Bearing Type	RPM	Termination Leads Count	Termination Type	Termination	Ingress Protection	Weight	Size / Dimension Shape	Size / Dimension Diameter	Current Rating	Material - Blade
ebm-papst Inc. A4E300-AS72-01	Tubeaxial	0.241 in H2O	122 °F	-13 °F	73.4 mm	Capacitor Thermal Overload Protection (TOP)	CCC CE EAC UL	96 W	230 VAC	Ball	1500 RPM	4 leads	Wire Leads	4 Wire Leads	IP44	3.7 lbs	Round	300 mm	0.42 A	Polypropylene PP Steel
ebm-papst Inc. A4E300-AP26-09

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
