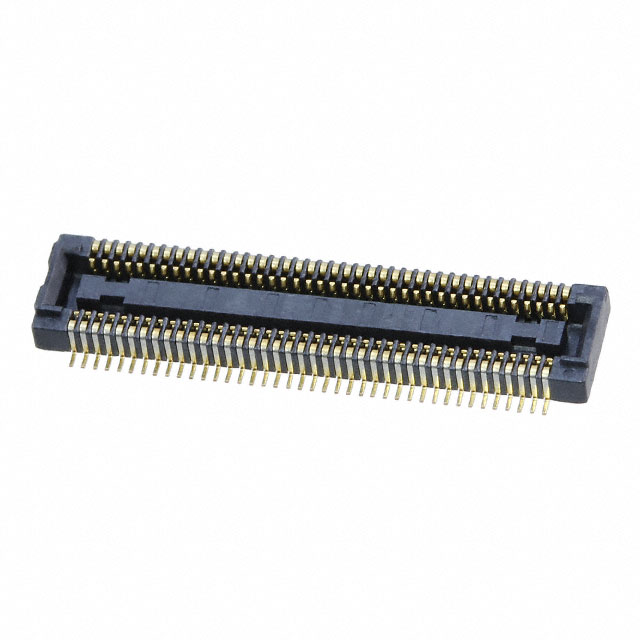

AXK780137G

Active

Panasonic Electric Works

CONN SOCKET 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK780137G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish
Panasonic Electric Works AXK780137G	Surface Mount	2	80	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket	Board Guide	0.059 in	1.5 mm	1.5 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
