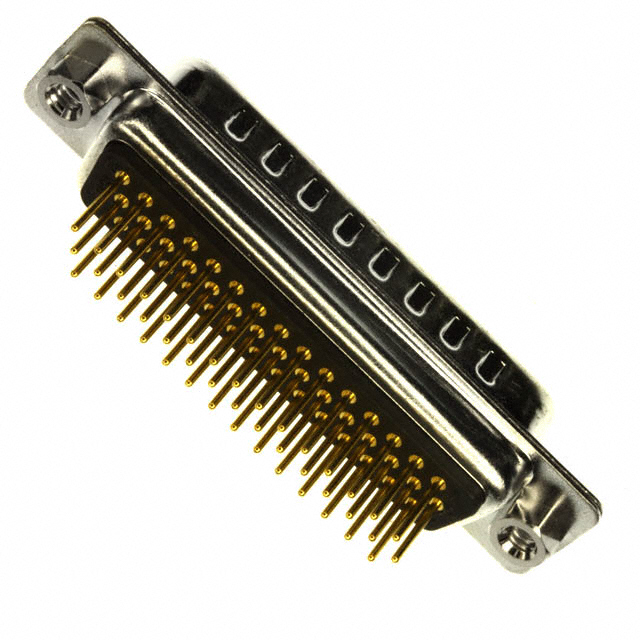

Specification	180-M44-113R011

Color	Black
Connector Layout	DB, B, High Density
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

180-M44 Series

Part	Connector Type	Flange Feature	Shell Material	Finish	Mounting Type	Connector Style	Contact Finish	Features	Number of Rows	Termination	Number of Positions	Shell Size	Connector Layout	Current Rating	Material Flammability Rating	Contact Type	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Material	Contact Form	Operating Temperature (Max)	Operating Temperature (Min)	Color	Dielectric Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
NorComp Inc. 180-M44-113R011	Male Pins Plug	Board Side (4-40)	Steel	Nickel Plated	Panel Mount Through Hole	D-Sub High Density	Gold	Grounding Indents Shielded	3	Solder	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-50 °C	Black	Nylon 9T Polyamide (PA9T)
NorComp Inc. 180-M44-213R911	Female Sockets Receptacle	Board Side (4-40) Female Screwlock (4-40) Mating Side	Steel	Nickel Plated	Panel Mount Through Hole	D-Sub High Density	Gold	Board Lock Shielded	3	Solder	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-55 °C	Black	Nylon 9T Polyamide (PA9T)
NorComp Inc. 180-M44-113R051	Male Pins Plug	Board Side (4-40)	Steel	Nickel Plated	Panel Mount Through Hole	D-Sub High Density	Gold	Board Lock Grounding Indents Shielded	3	Solder	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-50 °C	Black	Nylon 9T Polyamide (PA9T)
NorComp Inc. 180-M44-113R911	Male Pins Plug	Board Side (4-40) Female Screwlock (4-40) Mating Side	Steel	Nickel Plated	Panel Mount Through Hole	D-Sub High Density	Gold	Board Lock Grounding Indents Shielded	3	Solder	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-50 °C	Black	Nylon 9T Polyamide (PA9T)
NorComp Inc. 180-M44-103L011	Male Pins Plug	Cable Side (4-40)	Steel	Nickel Plated	Panel Mount	D-Sub High Density	Gold	Grounding Indents Shielded	3	Solder Cup	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Brass	Machined	105 °C	-55 °C	Black	Glass Filled Polybutylene Terephthalate (PBT)	28 AWG	24 AWG
NorComp Inc. 180-M44-203L011	Female Sockets Receptacle	Cable Side (4-40)	Steel	Nickel Plated	Panel Mount	D-Sub High Density	Gold	Shielded	3	Solder Cup	44	3	B DB High Density	3 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-55 °C	Black	Glass Filled Polybutylene Terephthalate (PBT)	28 AWG	24 AWG
NorComp Inc. 180-M44-103L021	Male Pins Plug	Cable Side (4-40)	Steel	Nickel Plated	Panel Mount	D-Sub High Density	Gold	Grounding Indents Shielded	3	Solder Cup	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Brass	Machined	105 °C	-55 °C	Black	Glass Filled Polybutylene Terephthalate (PBT)	28 AWG	24 AWG
NorComp Inc. 180-M44-213R031	Female Sockets Receptacle	Mating Side (4-40)	Steel	Nickel Plated	Panel Mount Through Hole	D-Sub High Density	Gold	Shielded	3	Solder	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-55 °C	Black	Nylon 9T Polyamide (PA9T)
NorComp Inc. 180-M44-213R051	Female Sockets Receptacle	Board Side (4-40)	Steel	Nickel Plated	Panel Mount Through Hole	D-Sub High Density	Gold	Board Lock	3	Solder	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Copper Alloy	Machined	125 °C	-55 °C	Black	Nylon 9T Polyamide (PA9T)
NorComp Inc. 180-M44-103L001	Male Pins Plug	Housing Shell (Unthreaded)	Steel	Nickel Plated	Panel Mount	D-Sub High Density	Gold	Grounding Indents Shielded	3	Solder Cup	44	3	B DB High Density	5 A	UL94 V-0	Signal	Flash	Flash	Brass	Machined	105 °C	-55 °C	Black	Glass Filled Polybutylene Terephthalate (PBT)	28 AWG	24 AWG
