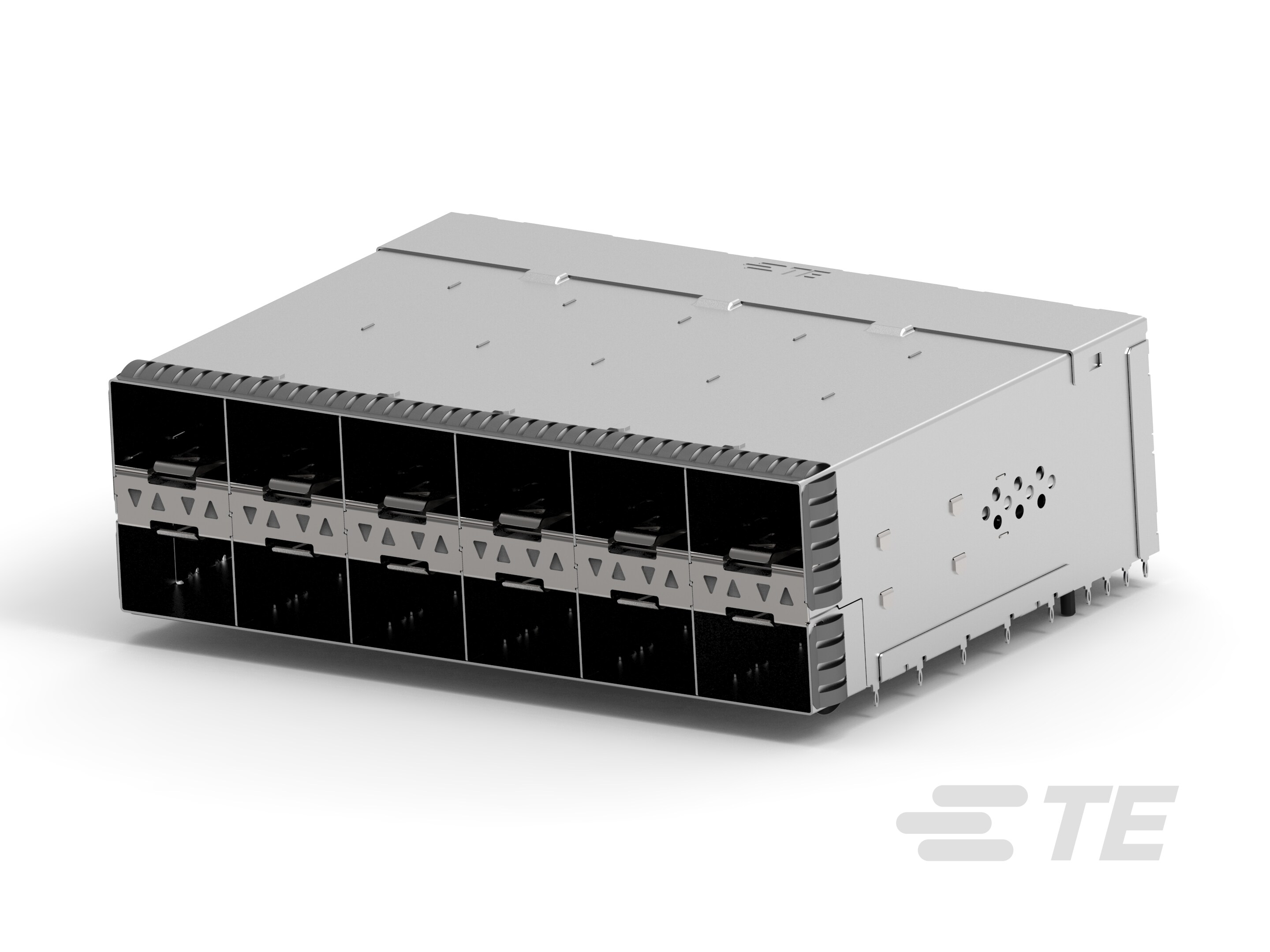

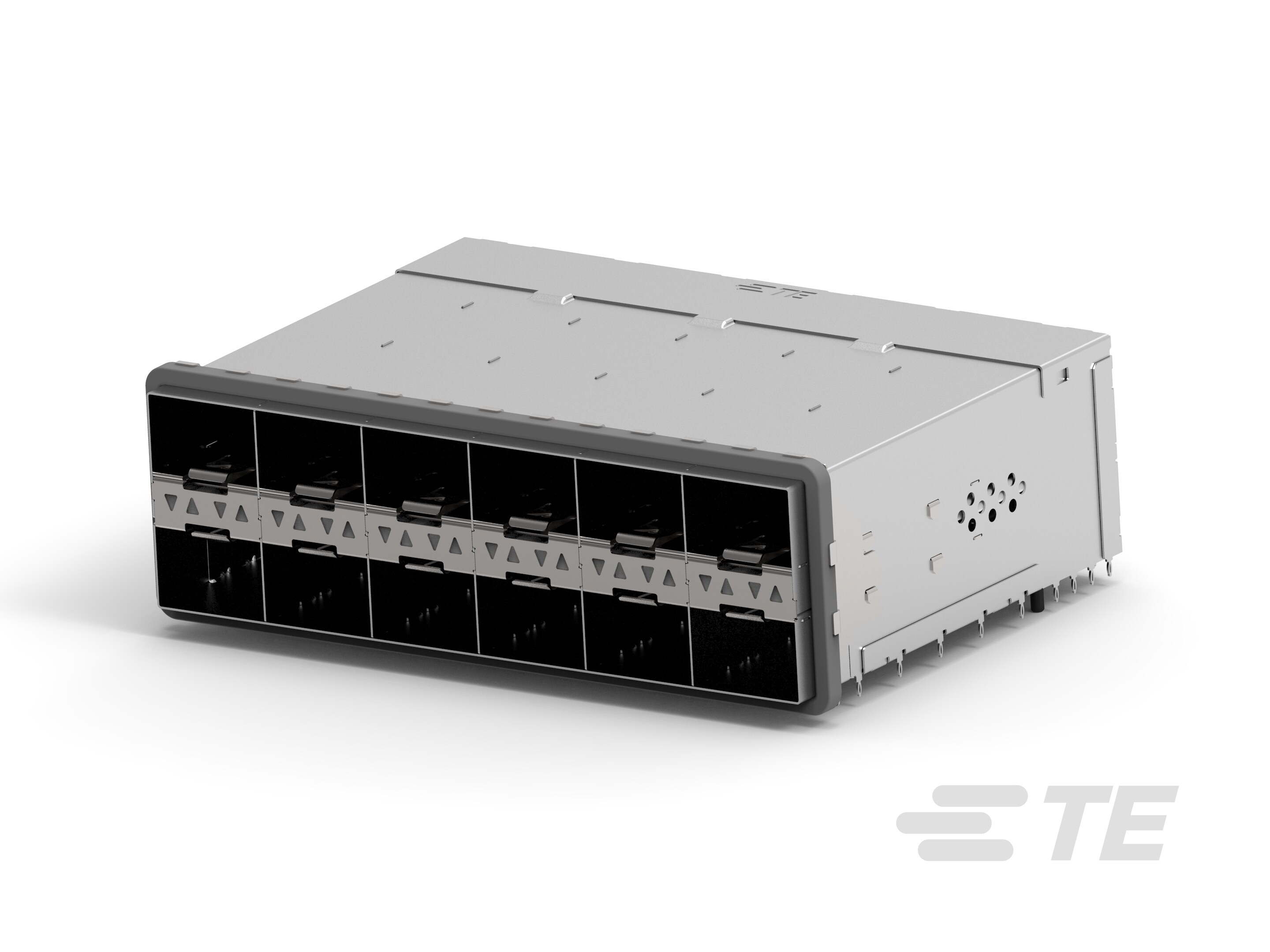

ZSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY

Find alt
2198339-4

2198339-4

Active
TE Connectivity AMP Connectors

ZSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY

Find alt

Description

General part information

2198339 Series

240 (20 x 12) Position zSFP+ Receptacle with Cage, Ganged (2x6) Connector Press-Fit Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification2198339-4
Connector Pin Configuration (Columns)6 pins
Connector Pin Configuration (Rows)2 pins
Connector StyleGanged, Receptacle with Cage
Connector TypezSFP+
Contact FinishGold-Palladium, Gold
FeaturesEMI Shielded, Light Pipe, Board Guide
Mounting TypeThrough Hole, Right Angle
Number of Positions (Columns)20
Number of Positions (Rows)12
Number of Positions (Total)240
TerminationPress-Fit
