CDBER0130L

Active

Comchip Technology

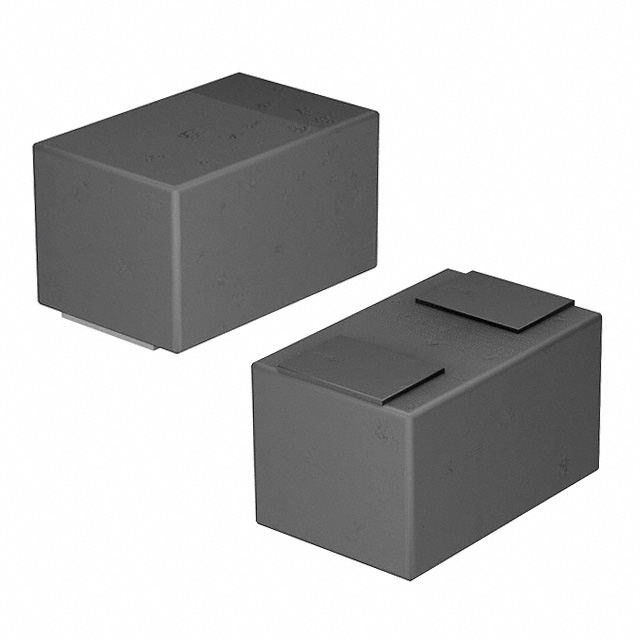

DIODE SCHOTTKY 30V 100MA 0503

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 0503

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBER0130L	CDBER0130 Series

Current - Average Rectified (Io)	100 mA	100 mA
Current - Reverse Leakage @ Vr	10 µA	10 - 500 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	125 °C	125 °C
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	0503/SOD-723F	0503/SOD-723F
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If	-	450 mV
Voltage - Forward (Vf) (Max) @ If [Max]	350 mV	350 mV

DIODE SCHOTTKY 30V 100MA 0503

Part	Technology	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Supplier Device Package	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If
Comchip Technology CDBER0130L	Schottky	125 °C	30 V	Any Speed	200 mA	Surface Mount	350 mV	0503/SOD-723F	100 mA	10 µA
Comchip Technology CDBER0130R	Schottky	125 °C	30 V	Any Speed	200 mA	Surface Mount		0503/SOD-723F	100 mA	500 nA	450 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 100mA Surface Mount 0503/SOD-723F
