HW-02-16-T-S-250-102

Active

Samtec Inc.

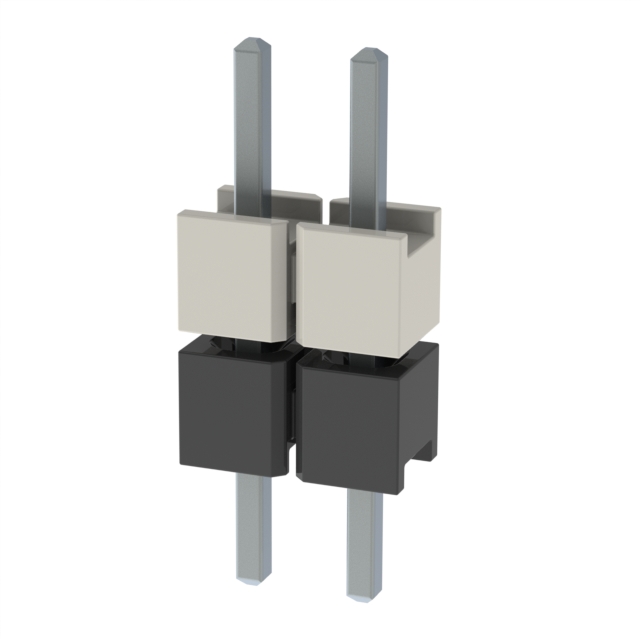

CONN HDR 2POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-02-16-T-S-250-102

Active

Samtec Inc.

CONN HDR 2POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-02-16-T-S-250-102

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	11.303 mm
Length - Overall Pin [x]	0.445 in
Length - Post (Mating) [x]	0.093 in
Length - Post (Mating) [x]	2.362 mm
Length - Stack Height [x]	0.25 in
Length - Stack Height [x]	6.35 mm
Length - Tail [x]	2.6 mm
Length - Tail [x]	0.102 "
Mounting Type	Through Hole
Number of Positions	2
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-02-16 Series

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing [x]	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Mounting Type	Length - Tail [x]	Length - Tail [x]	Length - Tail	Length - Tail [custom]
Samtec Inc. HW-02-16-L-D-255-SM	2.54 mm	0.1 in	0.25 Ám	10 Áin	Black	2	0.125 in	3.175 mm	Solder	4	6.477 mm	0.255 in	0.1 in	2.54 mm	0.38 in	9.65 mm	Gold	Surface Mount
Samtec Inc. HW-02-16-G-D-266-SM	2.54 mm	0.1 in	0.25 Ám	10 Áin	Black	2	0.114 in	2.896 mm	Solder	4	6.756 mm	0.266 in	0.1 in	2.54 mm	0.38 in	9.65 mm	Gold	Surface Mount
Samtec Inc. HW-02-16-F-D-265-SM	2.54 mm	0.1 in	0.076 Ám	3 Áin	Black	2	0.115 in	2.921 mm	Solder	4	6.731 mm	0.265 in	0.1 in	2.54 mm	0.38 in	9.65 mm	Gold	Surface Mount
Samtec Inc. HW-02-16-F-D-250-SM	2.54 mm	0.1 in	0.076 Ám	3 Áin	Black	2	0.13 in	3.302 mm	Solder	4	6.35 mm	0.25 in	0.1 in	2.54 mm	0.38 in	9.65 mm	Gold	Surface Mount
Samtec Inc. HW-02-16-T-S-250-102	2.54 mm	0.1 in			Black	1	0.093 in	2.362 mm	Solder	2	6.35 mm	0.25 in			0.445 in	11.303 mm	Tin	Through Hole	2.6 mm	0.102 "
Samtec Inc. HW-02-16-F-D-250-SM-A	2.54 mm	0.1 in	0.076 Ám	3 Áin	Black	2	0.13 in	3.302 mm	Solder	4	6.35 mm	0.25 in	0.1 in	2.54 mm	0.38 in	9.65 mm	Gold	Surface Mount
Samtec Inc. HW-02-16-L-D-275-SM	2.54 mm	0.1 in	0.25 Ám	10 Áin	Black	2	0.105 in	2.667 mm	Solder	4	6.985 mm	0.275 in	0.1 in	2.54 mm	0.38 in	9.65 mm	Gold	Surface Mount
Samtec Inc. HW-02-16-T-S-275-085	2.54 mm	0.1 in			Black	1	0.085 in	2.159 mm	Solder	2	6.985 mm	0.275 in			0.445 in	11.303 mm	Tin	Through Hole			2.159 mm	0.085 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29

Description

General part information

HW-02-16 Series

2 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
