MS3112E16-23S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3112E16-23S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3112E16-23S | MS3112E16 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A, 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 23 | 8 - 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, Y, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 23 | 23 - 26 |
| Shell Size - Insert [Min] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 128.88 | |
| 10 | $ 118.27 | |||
| 25 | $ 113.72 | |||
| 50 | $ 109.93 | |||
MS3112E16 Series
RECEPT
| Part | Primary Material | Qualification | Insert Material | Grade | Fastening Type | Contact Finish - Mating | Shielding | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Material | Connector Type | Shell Finish | Applications | Orientation | Mounting Feature | Color | Ingress Protection | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3112E16-26PZ | |||||||||||||||||||||||
Amphenol Industrial Operations MS3112E16-8S | Metal | MIL-DTL-26482 Series I | Neoprene | Military | Bayonet Lock | Gold | Unshielded | Aluminum | -55 °C | 125 °C | 8 | Copper Alloy | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | N | Flange | Olive Drab | Environment Resistant | ||||
Amphenol Industrial Operations MS3112E16-26SY | Metal | MIL-DTL-26482 Series I | Neoprene | Military | Bayonet Lock | Gold | Unshielded | Aluminum | -55 °C | 125 °C | 26 | Copper Alloy | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Y | Flange | Olive Drab | Environment Resistant | 16 | 26 | ||
Amphenol Industrial Operations MS3112E16-8SW | Metal | MIL-DTL-26482 Series I | Neoprene | Military | Bayonet Lock | Gold | Unshielded | Aluminum | -55 °C | 125 °C | 8 | Copper Alloy | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | W | Flange | Olive Drab | Environment Resistant | ||||
Amphenol Industrial Operations MS3112E16-26SW | Metal | MIL-DTL-26482 Series I | Neoprene | Military | Bayonet Lock | Gold | Unshielded | Aluminum | -55 °C | 125 °C | 26 | Copper Alloy | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | W | Flange | Olive Drab | Environment Resistant | 16 | 26 | ||
Amphenol Industrial Operations MS3112E16-8PY | |||||||||||||||||||||||
Amphenol Industrial Operations MS3112E16-23S | Metal | MIL-DTL-26482 Series I | Neoprene | Military | Bayonet Lock | Gold | Unshielded | Aluminum | -55 °C | 125 °C | 23 | Copper Alloy | Receptacle, Female Sockets | Olive Drab Chromate over Cadmium | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | Flange | Olive Drab | Environment Resistant | 16 | 23 | 600 VAC | 7.5 A, 13 A |
Amphenol Industrial Operations MS3112E16-26P | Metal | MIL-DTL-26482 Series I | Neoprene | Military | Bayonet Lock | Gold | Unshielded | Aluminum | -55 °C | 125 °C | 26 | Copper Alloy | Male Pins, Receptacle | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | N | Flange | Olive Drab | Environment Resistant | 16 | 26 | ||
Amphenol Industrial Operations MS3112E16-26PY |
Description
General part information
MS3112E16 Series

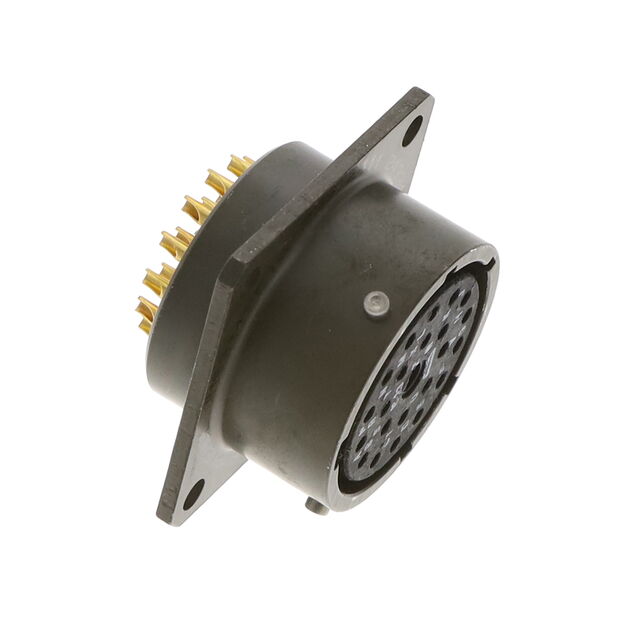

23 Position Circular Connector Receptacle, Female Sockets Solder Cup
