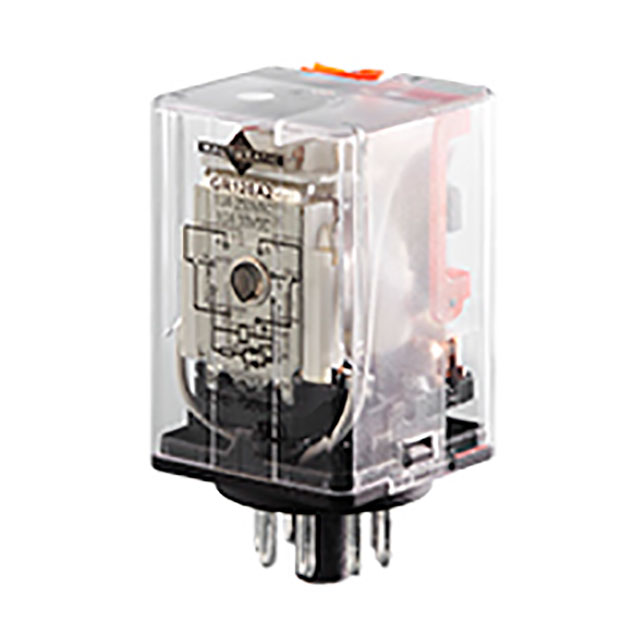

GR120A2

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 10A 120V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 10A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GR120A2	GR120A Series

Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC	120 VAC
Contact Form	DPDT (2 Form C)	3PDT (3 Form C), DPDT (2 Form C)
Contact Rating (Current)	10 A	10 A
Features	Test Button, Lighted Indicator	Lighted Indicator, Test Button
Mounting Type	Socketable	Socketable
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 11 Pin (Octal), Plug In, 8 Pin (Octal)

RELAY GEN PURPOSE 3PDT 10A 120V

Part	Switching Voltage [Max]	Coil Type	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Contact Rating (Current)	Coil Voltage	Contact Form	Termination Style
Macromatic Industrial Controls GR120A3T	30 VDC, 250 VAC	Non Latching	General Purpose	-40 °C	55 °C	Socketable	Lighted Indicator	10 A	120 VAC	3PDT (3 Form C)	Plug In, 11 Pin (Octal)
Macromatic Industrial Controls GR120A2	30 VDC, 250 VAC	Non Latching	General Purpose	-40 °C	55 °C	Socketable	Lighted Indicator, Test Button	10 A	120 VAC	DPDT (2 Form C)	Plug In, 8 Pin (Octal)
Macromatic Industrial Controls GR120A2T	30 VDC, 250 VAC	Non Latching	General Purpose	-40 °C	55 °C	Socketable	Lighted Indicator	10 A	120 VAC	DPDT (2 Form C)	Plug In, 8 Pin (Octal)
Macromatic Industrial Controls GR120A3	30 VDC, 250 VAC	Non Latching	General Purpose	-40 °C	55 °C	Socketable	Lighted Indicator, Test Button	10 A	120 VAC	3PDT (3 Form C)	Plug In, 11 Pin (Octal)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.26

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
