1110-7511-000

Active

Radiall USA, Inc.

SMC M RA BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M RA BHD

Technical Specifications

Parameters and characteristics for this part

Specification	1110-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMC M RA BHD

Part	Connector Style	Frequency - Max [Max]	Mounting Type	Center Contact Material	Includes	Body Finish	Housing Color	Body Material	Dielectric Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Impedance	Mounting Feature	Insertion Loss	Center Contact Plating	Number of Ports	Mating Cycles
Radiall USA, Inc. 1110-7511-000	SMC	10 GHz	Panel Mount, Right Angle, Through Hole	Brass	1 Connector, 1 Lockwasher, 1 Nut	Nickel	Silver	Brass	Polytetrafluoroethylene (PTFE)	Solder	-65 ░C	165 °C	Solder	Jack, Male Pin	50 Ohms	Bulkhead - Front Side Nut	0.5 dB	Gold	1	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

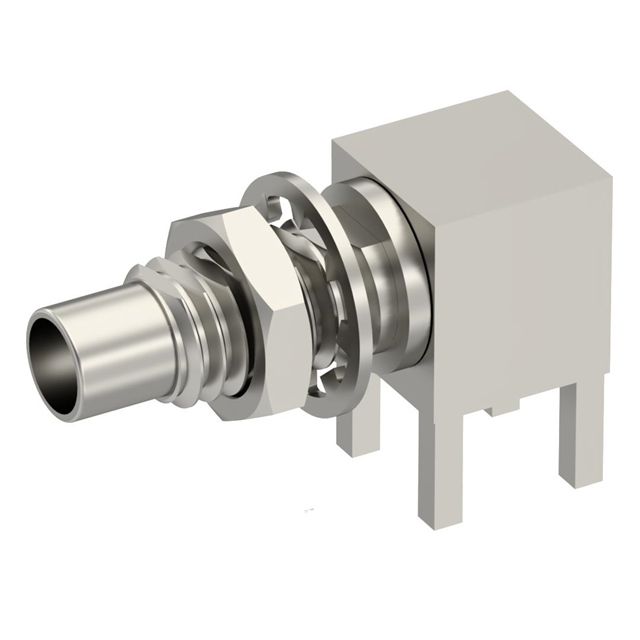

SMC Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
