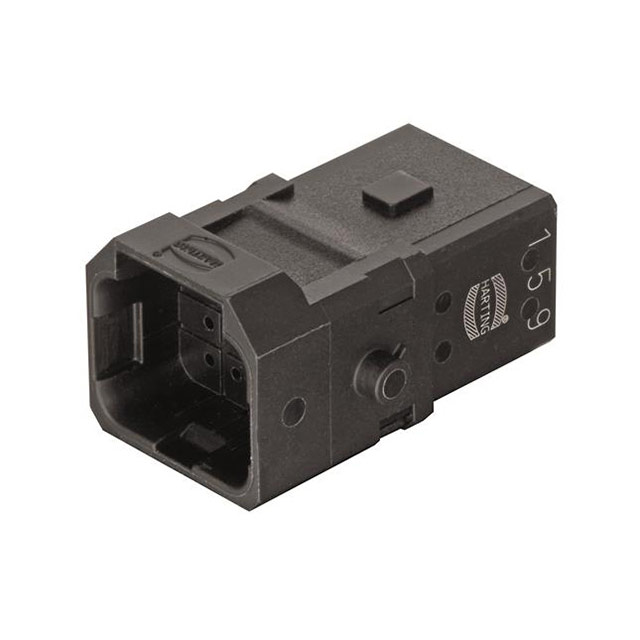

09100123000

Obsolete

HARTING Technology Group

1A 12PIN MALE CRIMP INSERT WITH

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

1A 12PIN MALE CRIMP INSERT WITH

Technical Specifications

Parameters and characteristics for this part

Specification	09100123000

Color	Black
Current Rating (Amps)	6.5 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Size	1 A
Termination Style	Crimp
Voltage Rating	50 V

Part	Housing Material	Current Rating (Amps)	Color	Size	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Positions	Voltage Rating	Termination Style	Material Flammability Rating	Connector Type
HARTING Technology Group 09100123005	Polyamide (PA) Nylon	6.5 A	Black	1 A	-30 ░C	90 °C	Male	12	50 V	Crimp	UL94 V-0
HARTING Technology Group 09100123100	Polyamide (PA) Nylon	6.5 A	Black	1 A	-30 ░C	90 °C	Female	12	50 V	Crimp	UL94 V-0
HARTING Technology Group 09100123000	Polyamide (PA) Nylon	6.5 A	Black	1 A	-30 ░C	90 °C	Male	12	50 V	Crimp	UL94 V-0
HARTING Technology Group 09100123006	Polyamide (PA) Nylon	6.5 A	Black	1 A	-30 ░C	90 °C	Male	12	50 V	Crimp	UL94 V-0	Insert without Contacts
HARTING Technology Group 09100123105	Polyamide (PA) Nylon	6.5 A	Black	1 A	-30 ░C	90 °C	Female	12	50 V	Crimp	UL94 V-0
HARTING Technology Group 09100123106	Polyamide (PA) Nylon	6.5 A	Black	1 A	-30 ░C	90 °C	Female	12	50 V	Crimp	UL94 V-0	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Black 12 Position Crimp
