IRAUDAMP7S

Active

Infineon Technologies

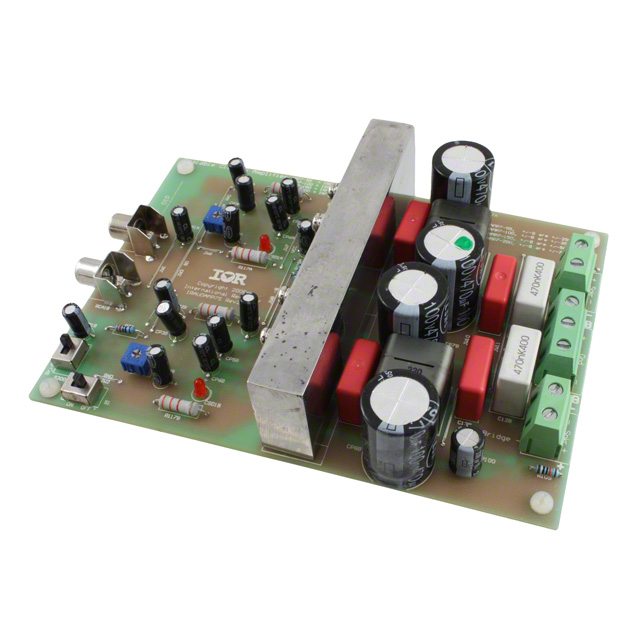

REFERENCE DESIGN BOARD - 25W-500W SCALABLE OUTPUT POWER CLASS D AUDIO POWER AMPLIFIER FEATURING THE IRS2092 CONTROLLER IC

Search across all available documentation for this part.

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 25W-500W SCALABLE OUTPUT POWER CLASS D AUDIO POWER AMPLIFIER FEATURING THE IRS2092 CONTROLLER IC

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP7S

Board Type	Fully Populated
Max Output Power x Channels @ Load	500 W, 250 W
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IRS2092, IRFI4019H
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	-45 V

Part	Supplied Contents	Board Type	Utilized IC / Part	Output Type	Max Output Power x Channels @ Load	Voltage - Supply [Min]	Voltage - Supply [Max]
Infineon Technologies IRAUDAMP7S	Board(s)	Fully Populated	IRFI4019H IRS2092	2-Channel (Stereo)	250 W 500 W	-45 V	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 185.11

General part information

IRFI4019H, IRS2092 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
