306-031-520-104

Active

EDAC Inc.

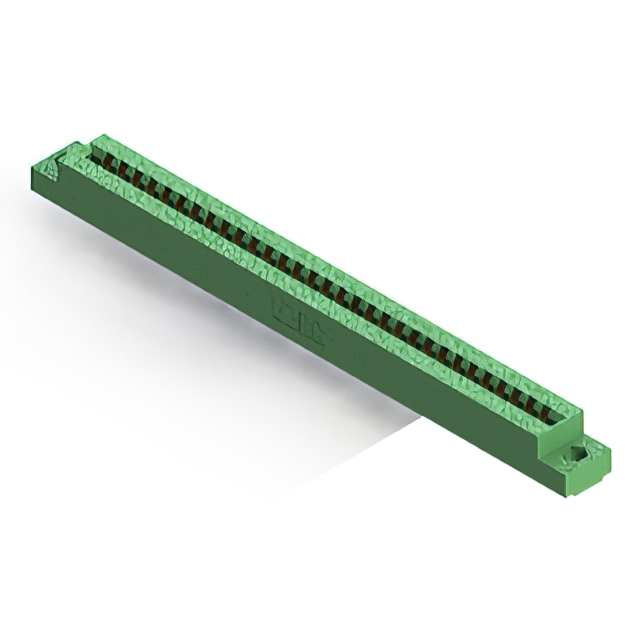

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

306-031-520-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-031-520-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	62
Number of Positions/Bay/Row [custom]	31
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-031 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Read Out	Pitch [x]	Pitch [x]	Flange Feature	Number of Positions	Material - Insulation	Number of Rows	Color	Card Type	Mounting Type	Contact Finish	Termination	Gender	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 306-031-420-108	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Tin	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1
EDAC Inc. 306-031-521-102	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 306-031-521-112	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	Flush Mount Side Opening Unthreaded	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 306-031-420-112	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	Flush Mount Side Opening Unthreaded	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Tin	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1			3.25 mm	0.128 "
EDAC Inc. 306-031-420-168	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Tin	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1					Card Guides
EDAC Inc. 306-031-500-178	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge		Gold	Solder Eyelet(s)	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 306-031-520-178	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 306-031-520-104	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 306-031-520-102	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Solder	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 306-031-400-104	-40 °C	105 ░C	Cantilever	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	62	Polyester Thermoplastic	2	Green	Non Specified - Dual Edge		Tin	Solder Eyelet(s)	Female	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	31	1			3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.93
Newark	Each	1	$ 18.91
		100	$ 10.97
		250	$ 9.21
		500	$ 8.19
		1000	$ 6.97

Description

General part information

306-031 Series

62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
