Technical Specifications
Parameters and characteristics for this part
| Specification | STM32F405OGY6TR |
|---|---|
| Connectivity | I2C, USB OTG, CANbus, EBI/EMI, UART/USART, IrDA, LINbus, SPI |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Data Converters | D/A 2x12b, A/D 13x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 72 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

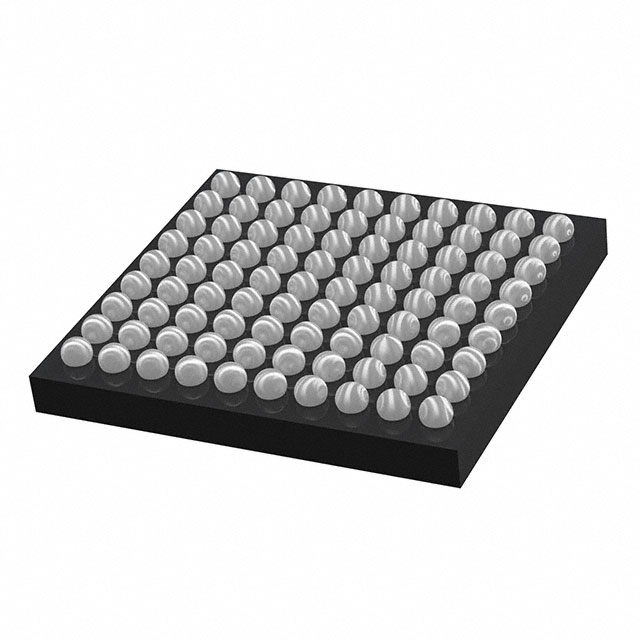

| Package / Case | 90-UFBGA, WLCSP |
| Peripherals | WDT, I2S, Brown-out Detect/Reset, POR, PWM, LCD, DMA |
| Program Memory Size | 1 MB |
| Program Memory Type | FLASH |
| RAM Size | 192 K |
| Speed | 168 MHz |
| Supplier Device Package | 90-WLCSP |
| Supplier Device Package [x] | 4.22 |
| Supplier Device Package [y] | 3.97 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.79 | |
| 10 | $ 10.65 | |||
| 25 | $ 10.16 | |||
| 100 | $ 8.82 | |||
| 250 | $ 8.42 | |||
| 500 | $ 7.68 | |||
| 1000 | $ 6.69 | |||
| Digi-Reel® | 1 | $ 11.79 | ||
| 10 | $ 10.65 | |||
| 25 | $ 10.16 | |||
| 100 | $ 8.82 | |||
| 250 | $ 8.42 | |||
| 500 | $ 7.68 | |||
| 1000 | $ 6.69 | |||
| Tape & Reel (TR) | 5000 | $ 6.19 | ||
Description
General part information
STM32F405VG Series
The STM32F405xx and STM32F407xx family is based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, 12 general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.
