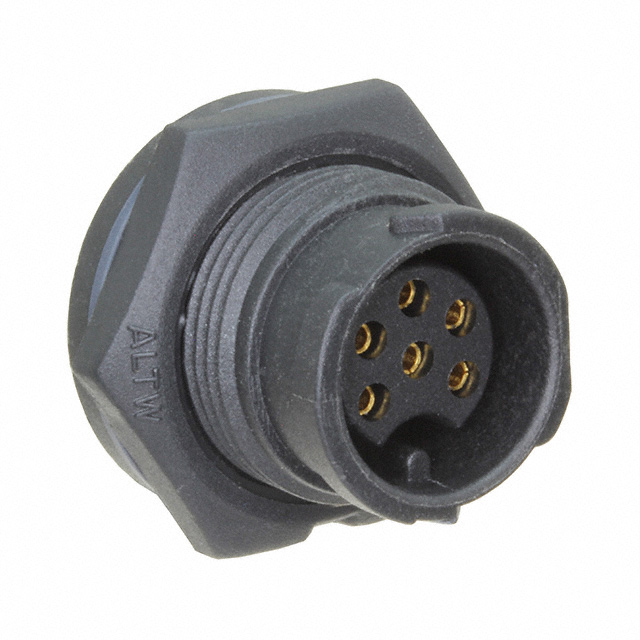

BD-06PMFS-QC8001

Active

Amphenol LTW

CONN RCPT FMALE 6POS SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 6POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06PMFS-QC8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Current Rating (Amps)	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Ingress Protection	Contact Material	Shell Size - Insert	Voltage Rating	Shielding	Shell Material	Orientation	Insert Material	Number of Positions	Connector Type	Mounting Feature	Contact Finish - Mating
Amphenol LTW BD-06PMFS-QC8001	5 A	Black	UL94 V-0	-40 °C	105 ░C	Plastic	Push-Pull	IP68 - Dust Tight Waterproof	Copper Alloy	B	300 VAC	Unshielded	Glass Filled Nylon Polyamide (PA)	Keyed	Polyamide (PA) Nylon Glass Filled	6	Receptacle Female Sockets	Bulkhead - Front Side Nut	Gold
Amphenol LTW BD-06PMFS-QC7001

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Data) Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources
