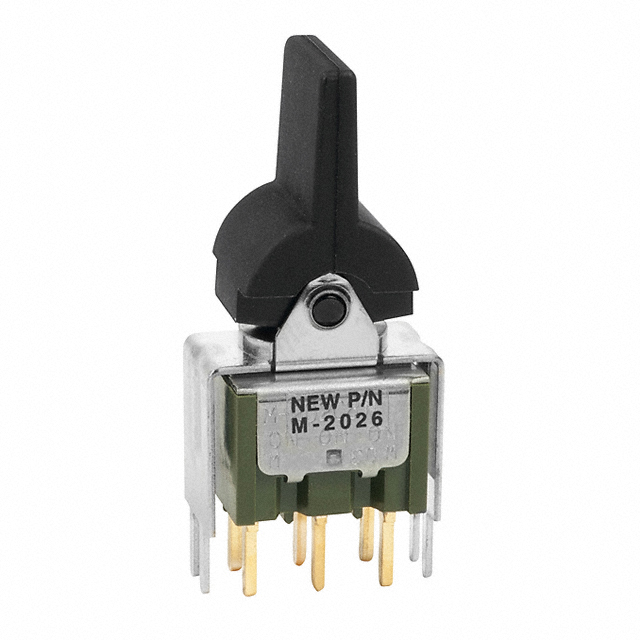

M2026TXG13-GA

Obsolete

NKK Switches

SWITCH ROCKER SP3T 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SP3T 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2026TXG13-GA

Actuator Marking	No Marking
Actuator Type	Paddle
Approval Agency	CSA, UL
Circuit	SP3T
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-On-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Electrical Life	Actuator Type	Termination Style	Actuator Marking	Approval Agency	Current Rating (Amps)	Circuit	Features	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Mounting Type	Color - Actuator/Cap
NKK Switches M2026TXG13-GA	28 V	50000 Cycles	Paddle	PC Pin	No Marking	CSA UL	0.4 VA	SP3T	Jumper needed to achieve triple throw	28 V	-30 ░C	85 °C	Mom-On-Mom	Through Hole	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SP3T 0.4VA (AC/DC) 28 V Through Hole
