BNO055-SHUTL

Obsolete

Bosch Sensortec

SHUTTLE BOARD BNO055

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BNO055

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BNO055-SHUTL	BNO055 Series

Contents	Board(s)	Board(s)
Embedded	-	MCU, 32-Bit
Embedded	-	True
Function	Magnetometer, Gyroscope, Accelerometer	Magnetometer, Gyroscope, Accelerometer
Interface	-	Serial, I2C, SPI
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, UART
Package / Case	-	28-TFLGA Module
Sensor Type	-	Accelerometer, Gyroscope, 9 Axis, Magnetometer
Supplied Contents	-	Board(s)
Supplier Device Package	-	28-LGA (5.2x3.8)
Type	Sensor	Sensor
Utilized IC / Part	BNO055	BNO055
Voltage - Supply	-	2.4 V
Voltage - Supply	-	3.6 V

IMU ACCEL/GYRO/MAG I2C 28LGA

Part	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Sensor Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Interface	Utilized IC / Part	Embedded	Type	Function	Contents
Bosch Sensortec BNO055	28-TFLGA Module	I2C, UART	85 °C	-40 °C	28-LGA (5.2x3.8)	Surface Mount	9 Axis, Accelerometer, Gyroscope, Magnetometer
Bosch Sensortec BNO055 USB-STICK							Accelerometer, Gyroscope, Magnetometer	2.4 V	3.6 V	Board(s)	I2C, Serial, SPI	BNO055	32-Bit, MCU
Bosch Sensortec BNO055-SHUTL												BNO055		Sensor	Accelerometer, Gyroscope, Magnetometer	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

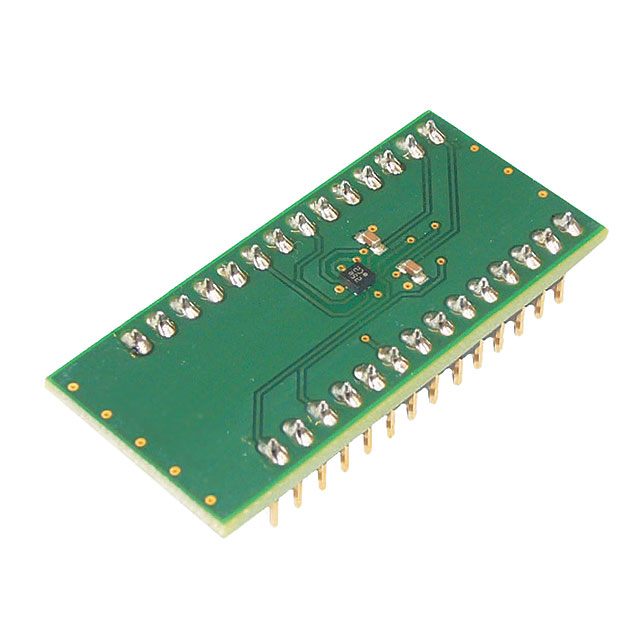

BNO055 Accelerometer, Gyroscope, Magnetometer Sensor Platform Evaluation Expansion Board
