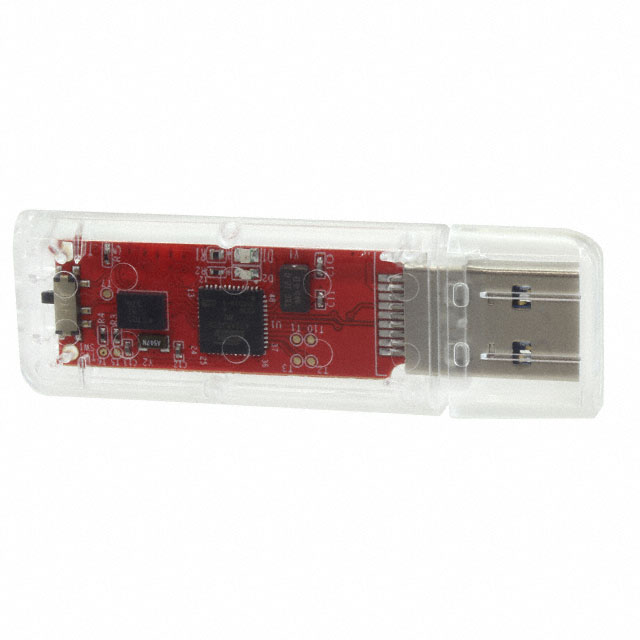

BNO055 USB-STICK

Obsolete

Bosch Sensortec

EVAL USB-STICK BNO055

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

EVAL USB-STICK BNO055

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNO055 - Accelerometer, Gyroscope, Magnetometer Sensor Evaluation Board

Technical documentation and resources

Specification	BNO055 USB-STICK	BNO055 Series

Contents	-	Board(s)
Embedded	MCU, 32-Bit	MCU, 32-Bit
Embedded	True	True
Function	-	Magnetometer, Gyroscope, Accelerometer
Interface	Serial, I2C, SPI	Serial, I2C, SPI
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, UART
Package / Case	-	28-TFLGA Module
Sensor Type	Accelerometer, Magnetometer, Gyroscope	Accelerometer, Gyroscope, 9 Axis, Magnetometer
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	28-LGA (5.2x3.8)
Type	-	Sensor
Utilized IC / Part	BNO055	BNO055
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.4 V	2.4 V

Part	Package / Case	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Sensor Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Interface	Utilized IC / Part	Embedded	Type	Function	Contents
Bosch Sensortec BNO055	28-TFLGA Module	I2C, UART	85 °C	-40 °C	28-LGA (5.2x3.8)	Surface Mount	9 Axis, Accelerometer, Gyroscope, Magnetometer
Bosch Sensortec BNO055 USB-STICK							Accelerometer, Gyroscope, Magnetometer	2.4 V	3.6 V	Board(s)	I2C, Serial, SPI	BNO055	32-Bit, MCU
Bosch Sensortec BNO055-SHUTL												BNO055		Sensor	Accelerometer, Gyroscope, Magnetometer	Board(s)
