TMC261-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD WITH TMC261
Deep-Dive with AI
Search across all available documentation for this part.
TMC261-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD WITH TMC261
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC261-BOB | TMC261 Series |
|---|---|---|
| Applications | - | General Purpose |
| Current - Output | - | 2 A |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Step/Direction, SPI |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 44-LQFP |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Secondary Attributes | SPI Interface(s) | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 44-PQFP (10x10) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC261 | TMC261 |
| Voltage - Load | - | 9 V |
| Voltage - Load | - | 59 V |
| Voltage - Supply | - | 5.25 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TMC261 Series
IC MTR DRV BIPOLAR 3-5.25V 44QFP
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Motor Type - Stepper | Interface | Mounting Type | Supplier Device Package | Function | Operating Temperature [Min] | Operating Temperature [Max] | Step Resolution [Max] | Step Resolution [Min] | Applications | Package / Case | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | Secondary Attributes | Utilized IC / Part | Type | Primary Attributes | Supplied Contents | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC261-PA | 9 V | 59 V | Bipolar | SPI, Step/Direction | Surface Mount | 44-PQFP (10x10) | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 | General Purpose | 44-LQFP | Half Bridge (4) | 5.25 V | 3 V | Power MOSFET | ||||||
Analog Devices Inc./Maxim Integrated TMC261-BOB | SPI Interface(s) | TMC261 | Power Management | Motors (Stepper) | Board(s) | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC261C-PA-T | 9 V | 59 V | Bipolar | SPI, Step/Direction | Surface Mount | 44-PQFP (10x10) | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 | General Purpose | 44-LQFP | Half Bridge (4) | 5.25 V | 3 V | Power MOSFET | 2 A | |||||
Analog Devices Inc./Maxim Integrated TMC261C-PA | 9 V | 59 V | Bipolar | SPI, Step/Direction | Surface Mount | 44-PQFP (10x10) | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 | General Purpose | 44-LQFP | Half Bridge (4) | 5.25 V | 3 V | Power MOSFET | 2 A | |||||
Analog Devices Inc./Maxim Integrated TMC261-PA-T | 9 V | 59 V | Bipolar | SPI, Step/Direction | Surface Mount | 44-PQFP (10x10) | Driver - Fully Integrated, Control and Power Stage | -40 °C | 125 ¯C | 1 | 0.00390625 | General Purpose | 44-LQFP | Half Bridge (4) | 5.25 V | 3 V | Power MOSFET |
Description
General part information
TMC261 Series

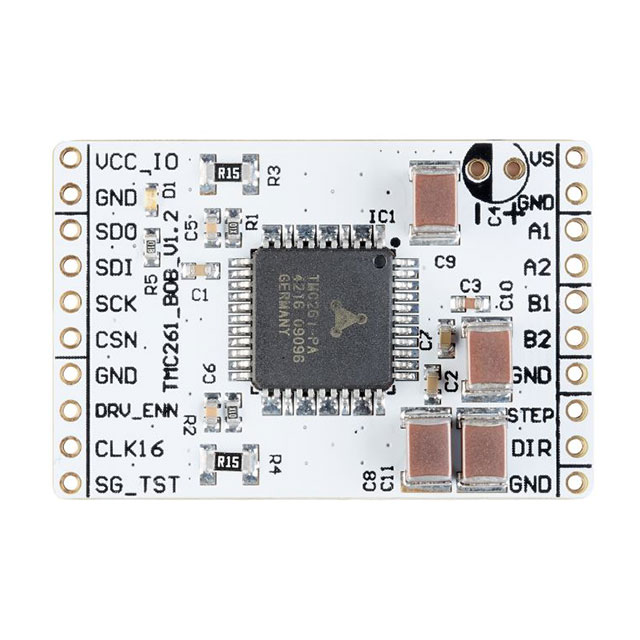

TMC261 Motor Controller/Driver, Stepper Power Management Evaluation Board
