NPPN101BFCN-RC

Active

Sullins Connector Solutions

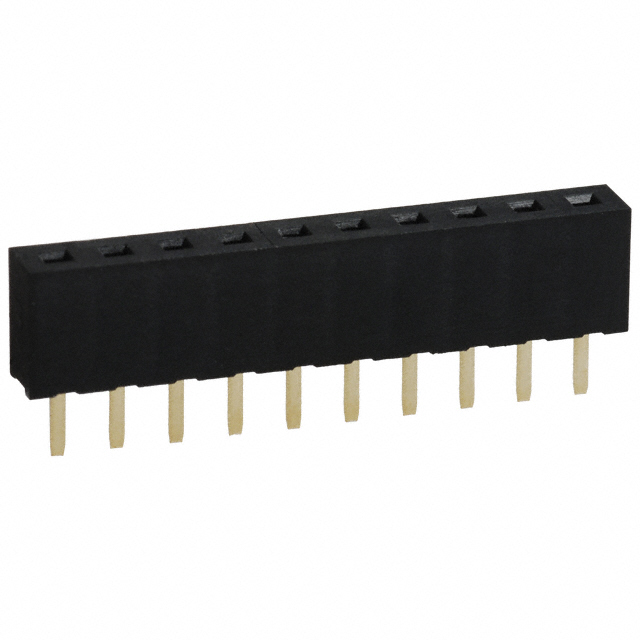

CONN HDR 10POS 0.079 GOLD PCB

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 10POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN101BFCN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Number of Positions Loaded	Contact Shape	Fastening Type	Contact Finish - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Contact Material	Contact Type	Connector Type	Termination	Contact Length - Post	Contact Length - Post	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Number of Positions	Mounting Type	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Voltage Rating
Sullins Connector Solutions NPPN101BFCN-RC	All	Square	Push-Pull	Gold	Black	-40 °C	105 ░C	Gold	1	UL94 V-0	Phosphor Bronze	Female Socket	Header	Solder	0.094 in	2.4 mm	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Flash	10	Through Hole	Flash	0.173 in	4.4 mm	2 A
Sullins Connector Solutions NPPN101BFLD-RC	All	Square	Push-Pull	Gold	Black	-40 °C	105 ░C	Gold	1	UL94 V-0	Phosphor Bronze	Female Socket	Header	Solder			Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Flash	10	Surface Mount	Flash	0.181 in	4.6 mm	2 A	150 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Header Connector 0.079" (2.00mm) Through Hole Gold
