ActiveEDAC Inc.

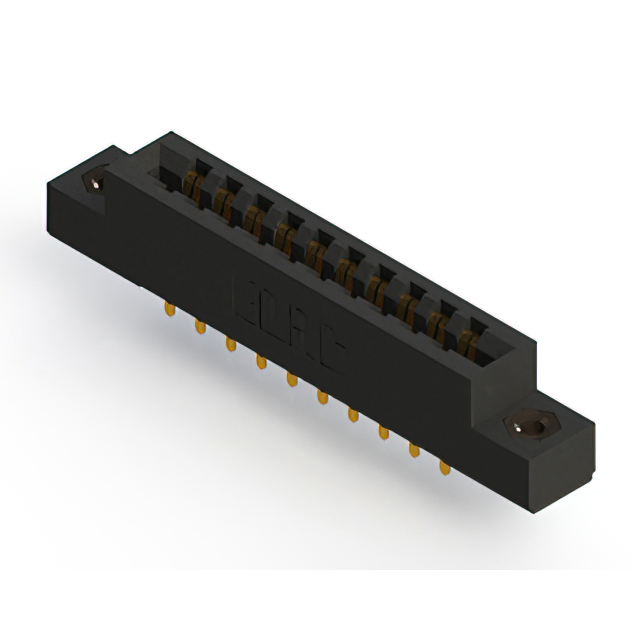

CONN EDGE DUAL FMALE 20POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-020-521-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-020-521-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-020 Series
| Part | Card Type | Read Out | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Positions | Mounting Type | Contact Finish | Termination Rows | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Positions/Bay/Row [custom] | Material - Insulation | Contact Type | Color | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Board Edge Straddle Mount | Gold | 2 | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | |||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Board Edge Straddle Mount | Gold | 2 | 2 | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | 3.25 mm | 0.128 " | Card Extender |
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Panel Mount Through Hole | Gold | 2 | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | |||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Panel Mount Through Hole | Gold | 2 | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | |||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Gold | 2 | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 10 | Polyester Thermoplastic | Semi Bellows | Black | ||||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Through Hole | Gold | 2 | 2 | -40 °C | 105 ░C | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | ||||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Panel Mount Through Hole | Gold | 2 | 2 | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | 3.96 mm | 0.156 in | |
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Panel Mount Through Hole | Gold | 2 | 2 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | |||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Board Edge Straddle Mount | Gold | 2 | 2 | -40 °C | 105 ░C | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | Card Extender | |||
EDAC Inc. | Non Specified - Dual Edge | Dual | Copper Alloy | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 20 | Board Edge Straddle Mount | Gold | 2 | 2 | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 | Polyester Thermoplastic | Semi Bellows | Black | 3.96 mm | 0.156 in | Card Extender |
