General part information

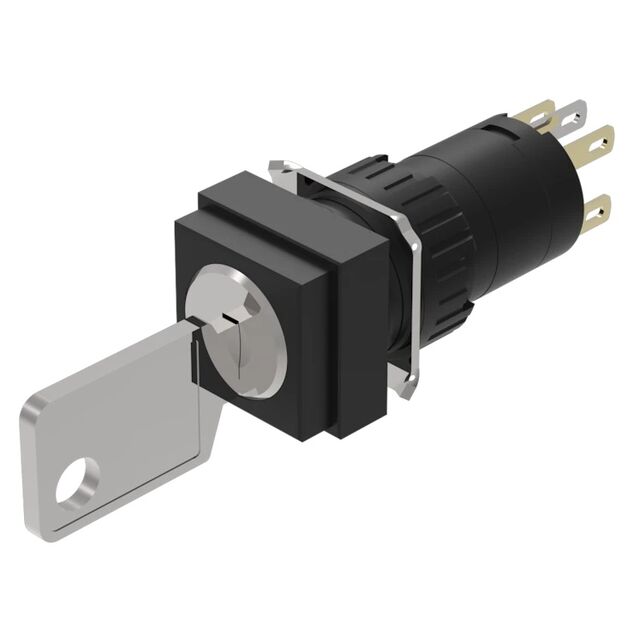

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 51-355.022D |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 90 ° |
| Circuit | DPST-NO/NC |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 5 A |
| Depth Behind Flange | 36 mm |
| Features | IP65 |
| Key Removable Positions | 2 |
| Number of Positions | 2 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 250 V |
SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Contact Timing | Current Rating (Amps) | Actuator Type | Depth Behind Flange | Switch Function | Panel Cutout Dimensions [diameter] | Angle of Throw | Features | Circuit | Termination Style | Termination Style | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Voltage Rating - AC | Key Removable Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 51-355.022D | Not Specified | 5 A | Flat Key | 36 mm | Off-On, On-Off | 16 mm | 90 ° | IP65 | DPST-NO/NC | 0.11 in | Quick Connect, Solder | 2.8 mm | 55 °C | -25 °C | 2 | 250 V | 2 |
