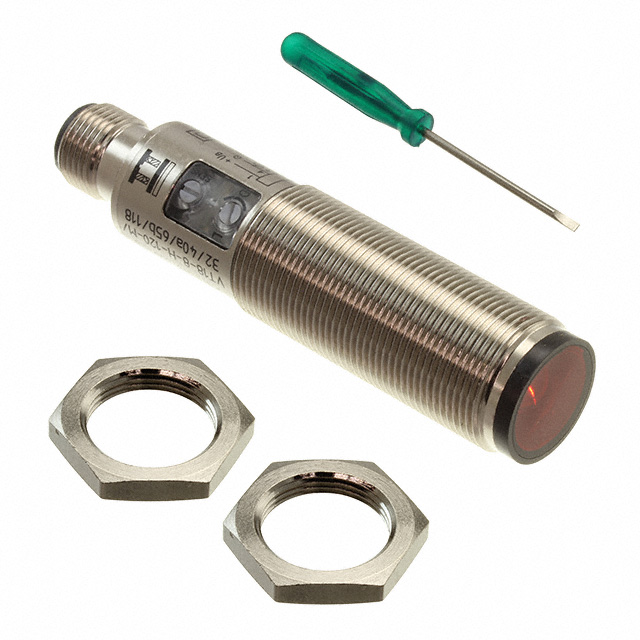

VT18-8-H-120-M/32/40A/65B/118

Obsolete

PEPPERL+FUCHS

PHOTO SEN 20-120MM BACK SUPPRESS

Search across all available documentation for this part.

Obsolete

PEPPERL+FUCHS

PHOTO SEN 20-120MM BACK SUPPRESS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 214.30

General part information

Diffuse Optical Sensor 0.787" ~ 4.724" (20mm ~ 120mm) Light-On/Dark-On

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VT18-8-H-120-M/32/40A/65B/118	VT18-8 Series

Adjustment Type	Adjustable	Adjustable
Connection Method	Connector, M12	Connector, M12
Ingress Protection	IP67	IP67
Light Source	Red LED	Red Laser Diode (655nm), Red LED
Operating Temperature [Max]	70 °C	55 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Configuration	Light-On/Dark-On	Light-On/Dark-On, PNP - Open Collector, Light-ON\Dark-ON
Response Time	1 ms	1 ms
Sensing Distance [Max]	120 mm	120 - 400 mm
Sensing Distance [Max]	4.724 in	4.724 - 15.748 in
Sensing Distance [Min]	0.787 "	0 - 0.787 "
Sensing Distance [Min]	20 mm	0 - 20 mm
Sensing Method	Diffuse	Diffuse
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

PHOTOELECTRIC SENSOR, V18 SERIES, DIFFUSE, 400 MM, NPN / PNP, 10 VDC TO 30 VDC

Part	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Adjustment Type	Connection Method	Ingress Protection	Light Source	Response Time	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]
PEPPERL+FUCHS VT18-8-400-M-LAS/40A/118/128	Light-On/Dark-On	55 °C	-25 °C	Diffuse	Adjustable	Connector, M12	IP67	Red Laser Diode (655nm)	1 ms	0 mm	400 mm	15.748 in	0 "	30 VDC	10 VDC
PEPPERL+FUCHS VT18-8-H-120-M/32/40A/65B/118	Light-On/Dark-On	70 °C	-25 °C	Diffuse	Adjustable	Connector, M12	IP67	Red LED	1 ms	20 mm	120 mm	4.724 in	0.787 "	30 VDC	10 VDC
PEPPERL+FUCHS VT18-8-H-120-M/40A/65B/118/128	Light-On/Dark-On	70 °C	-25 °C	Diffuse	Adjustable	Connector, M12	IP67	Red LED	1 ms	20 mm	120 mm	4.724 in	0.787 "	30 VDC	10 VDC
PEPPERL+FUCHS VT18-8-400-M/40A/118/128	Light-On/Dark-On	70 °C	-25 °C	Diffuse	Adjustable	Connector, M12	IP67	Red LED	1 ms	0 mm	400 mm	15.748 in	0 "	30 VDC	10 VDC
PEPPERL+FUCHS VT18-8-400-M/32/40A/118	PNP - Open Collector, Light-ON\Dark-ON	70 °C	-25 °C	Diffuse	Adjustable	Connector, M12	IP67	Red LED	1 ms	0 mm	400 mm	15.748 in	0 "	30 VDC	10 VDC
