R141004000W

Active

Radiall USA, Inc.

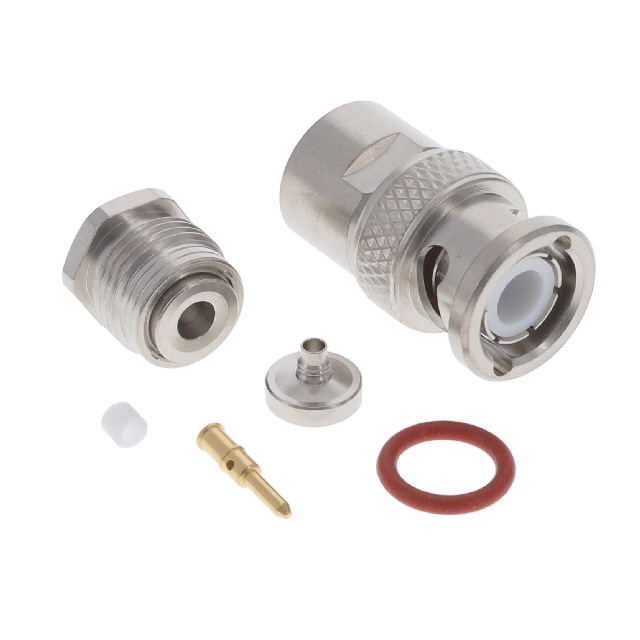

BNC / STRAIGHT PLUG CLAMP TYPE C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R141004000W

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG CLAMP TYPE C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R141004000W

Body Finish	Nickel
Body Material	Brass
Cable Group	RD-316, 179, 316, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

R14100 Series

Part	Frequency - Max [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Shield Termination	Cable Group	Voltage Rating	Connector Style	Number of Ports	Contact Termination	Fastening Type	Body Material	Body Finish	Center Contact Plating	Impedance	Dielectric Material	Connector Type	Center Contact Material	Mating Cycles	Cable Group
Radiall USA, Inc. R141008000	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	141 142 223 400 RG-58	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass
Radiall USA, Inc. R141008000W	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	141 142 223 400 RG-58	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500
Radiall USA, Inc. R141003000	1.5 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	RG-178	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500	196
Radiall USA, Inc. R141004000W	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	179 316 RD-316 RG-174	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500
Radiall USA, Inc. R141007000W	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	RG-58	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500	141
Radiall USA, Inc. R141007000	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	RG-58	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500	141
Radiall USA, Inc. R141005000	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	PPD	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500
Radiall USA, Inc. R141004000	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	179 316 RD-316 RG-174	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500
Radiall USA, Inc. R141007161W	1.5 GHz	Free Hanging (In-Line)	-35 °C	70 °C	Silver	Clamp	RG-58	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass		141
Radiall USA, Inc. R141005000W	4 GHz	Free Hanging (In-Line)	-65 ░C	165 °C	Silver	Clamp	PPD	500 V	BNC	1	Solder	Bayonet Lock	Brass	Nickel	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.79
		10	$ 22.58
		25	$ 21.60
		50	$ 20.91
		100	$ 20.21
		250	$ 19.10
		500	$ 18.54

Description

General part information

R14100 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
