DR-25-TW-3/4-0

Active

TE Connectivity Raychem Cable Protection

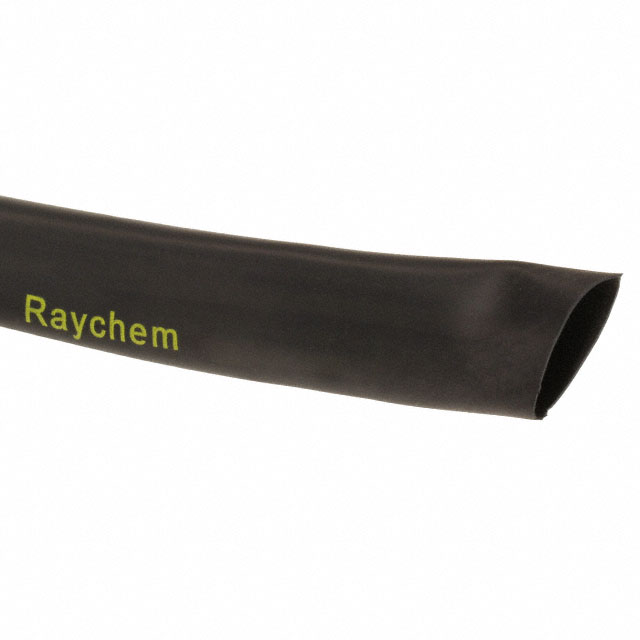

HEATSHRINK TWIN WALL 3/4" BK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TWIN WALL 3/4" BK

Technical Specifications

Parameters and characteristics for this part

Specification	DR-25-TW-3/4-0

Color	Black
Features	Fuel Resistant, Fluid Resistant, Abrasion Resistant, Oil Resistant, Chemical Resistant, Flame Retardant, Heat Resistant
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Inner Diameter - Supplied [diameter]	0.748 in
Inner Diameter - Supplied [diameter]	19 mm
Material	Elastomer, Irradiated
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-103 °F
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shrink Temperature	125 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shrink Temperature	Material	Recovered Wall Thickness	Recovered Wall Thickness	Color	Type	Recovered Wall Thickness	Spool Size	Spool Size	Length	Recovered Wall Thickness	Inner Diameter - Recovered
TE Connectivity Raychem Cable Protection DR-25-TW-1-1/4-0-SP	1.24 in	31.5 mm	2 to 1	0.591 in	15.01 mm	-103 °F	150 °C	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	125 °C	Elastomer Irradiated	0.043 in	1.09 mm	Black	Tubing Flexible
TE Connectivity Raychem Cable Protection DR-25-TW-3/4-0	0.748 in	19 mm	2 to 1	0.375 in	9.53 mm	-103 °F	150 °C	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	125 °C	Elastomer Irradiated	0.76 mm		Black	Tubing Flexible	0.03 "
TE Connectivity Raychem Cable Protection DR-25-1/4-0SPCS6938	0.25 in	6.35 mm		0.125 in		-103 °F	150 °C	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Oil Resistant	150 °C	Elastomer Irradiated	0.89 mm		Black	Tubing Flexible		91.4 m	300 ft	Enter Number of Feet in Order Quantity	0.035 in	3.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.748" (19.00mm) 2 to 1 Black
