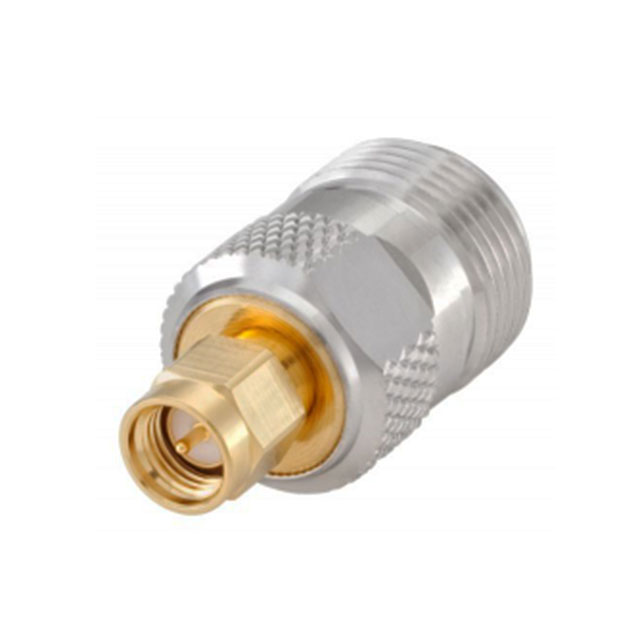

32S153-K00L5

Active

Rosenberger

ADAPT SMA PLUG - N JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA PLUG - N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	32S153-K00L5

Adapter Type	Plug to Jack
Body Finish	Nickel, Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Type	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Impedance	Mating Cycles	Dielectric Material	Body Finish	Center Contact Material	Center Contact Plating	Conversion Type	Frequency - Max [Max]	Body Material	Mounting Type	Style	Center Gender
Rosenberger 32S153-K00L5	Plug to Jack	SMA Plug Male Pin	155 °C	-55 °C	Female Socket N Jack	50 Ohms	500	Polytetrafluoroethylene (PTFE)	Gold Nickel	Beryllium Copper	Gold	Between Series	11 GHz	Beryllium Copper Brass	Free Hanging (In-Line)	Straight
Rosenberger 32S153-S00L5	Plug to Plug	SMA Plug Male Pin	155 °C	-55 °C	Male Pin N Plug	50 Ohms	500	Polytetrafluoroethylene (PTFE)	Gold Nickel	Brass	Gold	Between Series	12 GHz	Beryllium Copper Brass	Free Hanging (In-Line)	Straight	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
