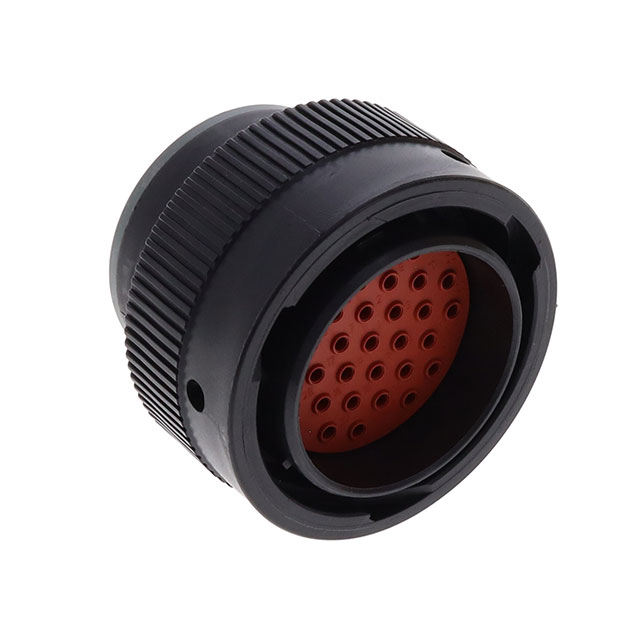

HDP26-24-31PT

HDP26-24-31PT

Active
TE Connectivity AMP Connectors

CONN PLG HSG MALE 31POS INLINE

Find alt
HDP26-24-31PT

HDP26-24-31PT

Active
TE Connectivity AMP Connectors

CONN PLG HSG MALE 31POS INLINE

Find alt

Description

General part information

DEUTSCH HD Series

31 Position Housing, Housing for Male Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Technical Specifications

Parameters and characteristics for this part

SpecificationHDP26-24-31PT
Connector TypePlug Housing
Contact ShapeCircular
Contact Size16 S
Contact TypeCrimp
Fastening TypeBayonet Lock
FeaturesCoupling Nut
Housing ColorBlack
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
Insert MaterialPolyetherimide, PEI
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions31
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
OrientationKeyed
Shell MaterialGlass Filled, Nylon 6/6, Polyamide (PA66)
Shell Size - Insert (Maximum)31
Shell Size - Insert (Minimum)24
ShieldingUnshielded
TypeFor Male Pins
