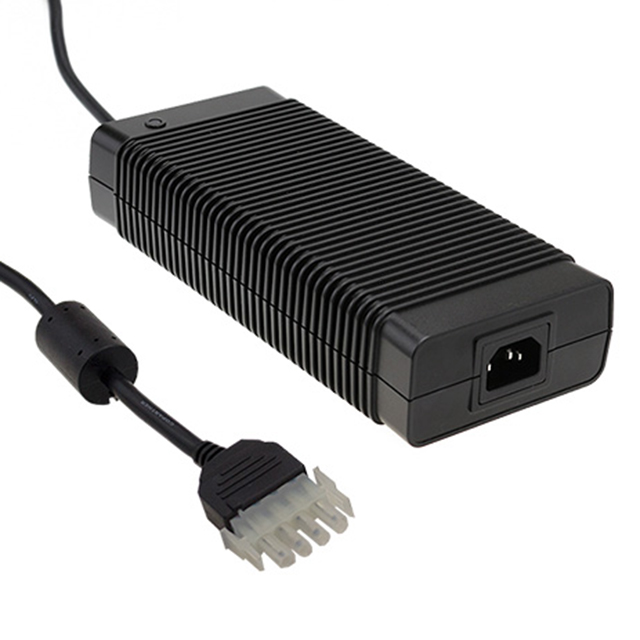

GC330A36-C4P
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 40.8V 6.4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC330A36-C4P
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 40.8V 6.4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC330A36-C4P |
|---|---|
| Approval Agency | cULus, CB, GS, CE |
| Battery Cell Size | 36 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 6.4 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 326.4 W |
| Size / Dimension [x] | 220 mm |
| Size / Dimension [x] | 8.66 " |
| Size / Dimension [y] | 3.74 " |
| Size / Dimension [y] | 95 mm |
| Size / Dimension [z] | 1.81 " |
| Size / Dimension [z] | 46 mm |
| Termination Style | Rectangular Connector |
| Type | Desktop |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 90 VAC, 127 VDC |
| Voltage - Nominal | 40.8 V |
| Weight | 1250 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 87.69 | |
| 5 | $ 83.38 | |||
| 10 | $ 81.59 | |||
| 12 | $ 82.21 | |||
| 25 | $ 79.28 | |||
Description
General part information
GC330A36 Series
Desktop Battery Charger 40.8V 6.4A 36V
